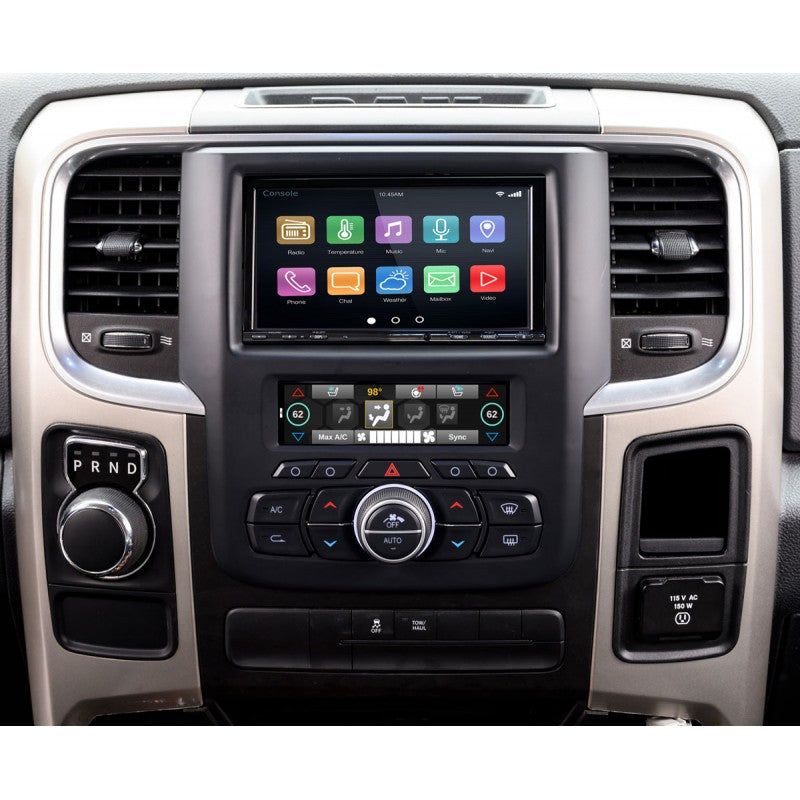

RPK4-CH4101 2013-2019 RAM Trucks (8.4" radio) Integrated Dash kit

Description

This complete radio replacement solution provides everything needed to achieve the best possible installation of any aftermarket radio, including factory-matched buttons, knobs, and graphical user interface. Giving the RAM owner a familiar user experience with the benefits of added features provided by the 5.2” LCD touchscreen. Easily swipe between climate control, camera selection, vehicle settings, performance gauges, and vehicle information.

Key Features

• Factory-matched dash kit with a complete set of climate control knobs and buttons (no need to use OE parts)
• 4 Programmable hard buttons with proximity-sense technology for quick access of cameras and more
• Supports up to 5 driver safety cameras with the use of RPA-16P5V, sold separately
• Accommodates a single-DIN or double-DIN aftermarket radio
• Multi-purpose 5.2” touchscreen LCD display for
  • Climate control
  • Camera selection
  • Vehicle settings
  • Performance gauges
  • Vehicle information
  • Feature setup for installer use

Retains These Features

• Steering wheel control functions
• Reverse camera (if equipped)
• Bed camera** (if equipped, requires RPA-16P5V)
• Amplified audio system (if equipped)
• Vehicle settings through 5.2” touchscreen

Included

• Main kit plastic with integrated touchscreen
• All climate control buttons and knobs
• Radio replacement interface
• Plug-in vehicle connection harness
• Radio connection harness
• Reverse camera input harness
• USB cable for connecting to OE hub
• USB cable for use without OE hub
• Chime speaker with bracket
• Double DIN mounting hardware
• Single DIN pocket
• Antenna adapter
• Factory Matched USB Hub (2 USB, HDMI, A/V Aux)

Application Guide

Year(s)	Make	Model	Trim Level	Additional Info
2013-2018	DODGE	RAM TRUCK	ALL TRIM LEVELS	—
2019	DODGE	RAM TRUCK	CLASSIC	—
2013-2018	RAM	RAM TRUCK	ALL TRIM LEVELS	—
2019	RAM	RAM TRUCK	CLASSIC	—

Compatibility Notes

• Only compatible in vehicles equipped with the 8" screen
• Does not retain the following features in the vehicle's cluster display
• Compass
• Phone Pop-Ups
• Navigation Pop-Ups
• Clock
• Does not retain the following uConnect features
• WiFi Hotspot
• SOS/Assist
• Does not retain factory amplifiers Speed Controlled Volume
• If vehicle is equipped with a cargo camera or more cameras are being added beyond a reverse camera, PAC part number RPA-16P5V must be used
