Rockford-Fosgate  |  SKU: PM300X1

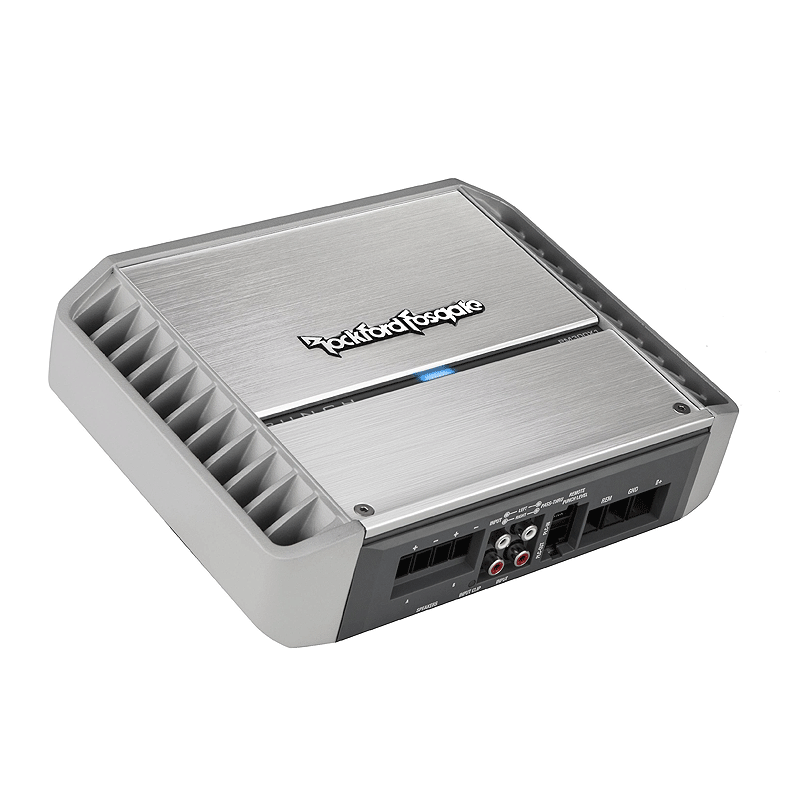

Rockford Fosgate Punch PM300X1

$249.99

Manufacturer
Model

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Highlight title

Text to highlight a key feature of your product

Description

Features:

  • Full-Range Monoblock Punch Series Class AB Marine Amplifier
  • RMS Power Rating:
    • 4 ohms: 200 watts x 1 chan.
    • 2 ohms: 300 watts x 1 chan.
  • Dynamic Power:
    • 4 ohms 0° Res : 260 watts x 1 chan.
    • 2 ohms 0° Res : 444 watts x 1 chan.
  • Includes a Rockford Fosgate Performance Verification Certificate
    w/ Inspection Data & Actual Power Rating, (aka "Birth Sheet")
  • CEA-2006 compliant amplifier
  • CE Compliant
  • LED power (blue) and protect (red) indicators
  • Features C.L.E.A.N. Set-up with 10-step set-up procedure
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • Marine grade two part epoxy coating on circuit boards
  • Marine grade stainless steel hardware
  • Preamp RCA outputs to daisy chain multiple amps
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Balanced Differential Inputs, to eliminate noise picked up by signal cables
  • Protected against Dust, UV, & Corrosion
  • Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
  • Features MEHSA3 (Maximum Efficiency Heat Sink Application - gen3)
  • High level input capable with Auto Turn-On circuit:
    • Requires Rockford Fosgate RFIF2SW, sold separately
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • Input sensitivity: 150 mV - 12 V
  • Frequency Response: 20 - 20,000 Hz
  • Efficiency (average): 74% @ 4-Ohm
  • Total Harmonic Distortion (THD): <1.0%
  • Punch EQ Bass: 0 - +18dB boost @ 45Hz.
  • Punch EQ2 Treble: 0 - +12.5dB @ 12kHz
  • 12dB/octave Butterworth crossover (selectable)
  • Variable high-pass filter: 50 - 250 Hz, 12 dB/octave
  • Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
  • Recommended Fuse Rating: 50A x 1 inline (not included)
  • Operating Voltage: 9 - 16 VDC
  • Max Current Draw: 45 A
  • Average Current Draw: 23 A
  • Power Wire Gauge: 4 AWG - 8 AWG
  • Speaker Wire Gauge: 8 AWG - 18 AWG
  • Dimensions: 7.76"W x 9.86"L x 2.38"H

Specifications:

Power Specifications - Full Range Channels:

  • RMS Power @ 4 ohms: 200 watts x 1 channels
  • RMS Power @ 2 ohms: 300 watts x 1 channels

Amplifier Specifications:

  • Marine Certified: Yes
  • Amplifier Class: AB
  • Number of Channels: 1 - Mono
  • Total RMS Power Output: 300 watts
  • Maximum Input Gauge Size: 4 AWG
  • Minimum Impedance Unbridged: 2 ohms
  • Minimum Impedance Bridged: Not Bridgeable
  • THD at Rated RMS Power: <1.0%
  • Speaker Level Inputs: Optional (Requires Accessory Adapter)
  • Preamp Outputs: 1 pair
  • Built-in Crossover: Low-Pass (LP), High-Pass (HP), Full (AP)
  • High-Pass Crossover Frequency: 50 - 250 Hz
  • Low-Pass Crossover Frequency: 50 - 250 Hz
  • Bass Boost: 0 - 18 dB
  • Bass/Gain Remote: Optional (Accessory required and sold separately)
  • CEA-2006 Compliant: Yes
  • Amp Bluetooth Connectivity: No
