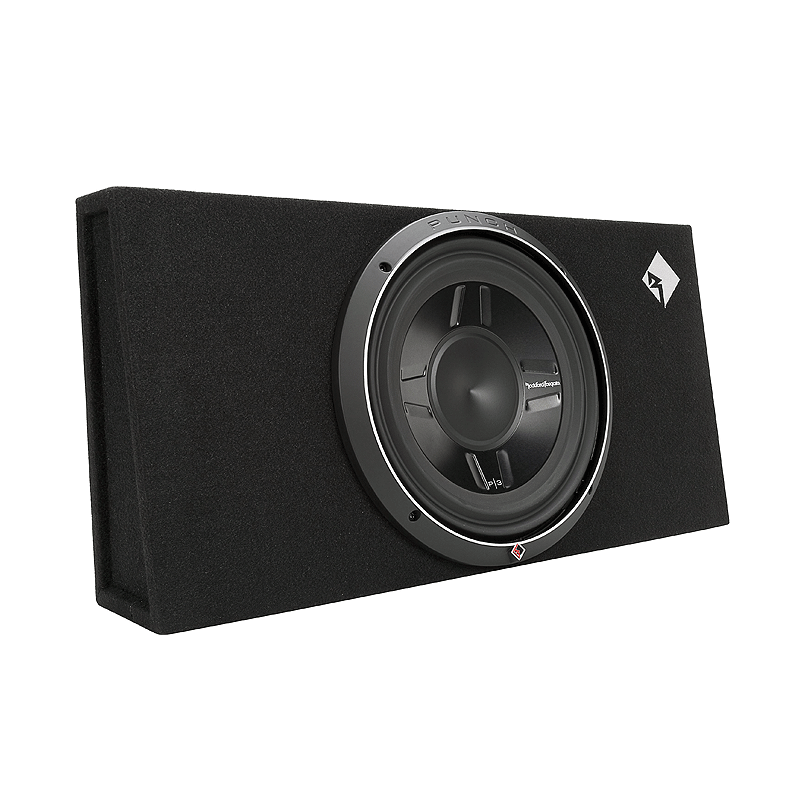

Rockford-Fosgate Punch P3S-1X12

Features:

General Features:

• 12" Punch Series Shallow-mount Subwoofer
• Final Impedance of Enclosure: 1-Ohm
• Power Handling:
• Peak: 800 watts
• RMS: 400 watts
• Recommended power range: 200 - 400 watts RMS
• 2.5" Voice Coil with spun-laced Nomex insulating collar
• Kevlar Fiber Semi-Pressed Paper Cone
• M-Roll Santoprene surround
• Anodized aluminum cone and dustcap
• Dual linear spider with embedded 16 AWG tinsel leads
• Diamond cut cast aluminum trim ring
• Shallow Motor Assembly
• Tear and fatigue resistant poly-cotton spider
• StampCast basket with integrated spider venting
• Optimized for both sealed enclosures
• Frequency Response: 34 - 250 Hz
• Sensitivity: 85 dB
• Xmax: 8.4 mm
• Magnet weight: 1.45 oz
• Perfect match for the Rockford Fosgate PBR300X1 amplifier
• Optional Stamped Mesh Grille Insert Available, sold separately: Rockford Fosgate P3SG-12

General Enclosure Features:

• Sealed Truck-Style Enclosure
• Internally wired to create a 1-Ohm amplifier load
• Computer optimized design
• 5/8" MDF enclosure material
• Spring post connectors
• Up to 10 AWG compression terminals
• Wired exclusively with Rockford Fosgate speaker cable
• Weight: 27 Lbs
• Box Dimensions: 27.4"W x 5.3"D1 - 3.3" D2 x 13.5"H
• Wedge Dimensions: 69.59"W x 13.46"D1 - 8.38" D2 x 34.29"H
