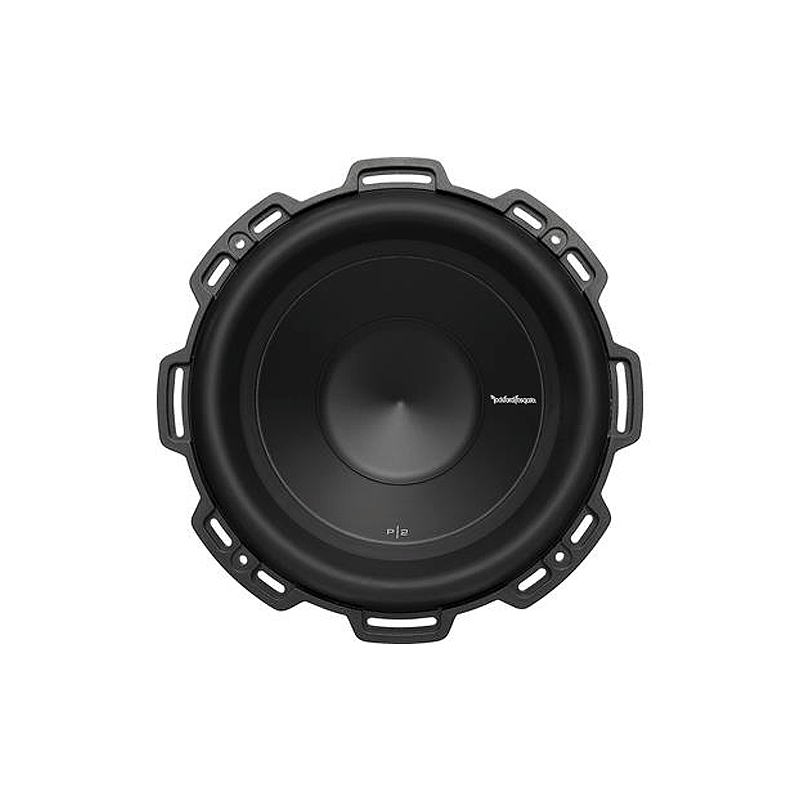

Rockford-Fosgate Punch P3D4-10

Features:

• 10" Dual 4 ohm Punch Subwoofer
• Power Handling:
• Peak: 1000 watts
• RMS: 500 watts
• Recommended power range: 250 - 600 watts RMS
• CEA-2031 Compliant
• Klippel Verified
• Flex-fit™ Mounting pattern
• Proprietary spider venting/cooling technique
• StampCast basket with integrated spider venting
• Sturdy 16 gauge compound bend frame geometry
• High modulus Kevlar™ re-inforced paper-pulp cone
• Semi-flexible, PVC removable protective motor cover
• Multi-point high-temp/high-strength neck joint bonding technique
• Tall-profile VAST™ Santoprene™ surround for larger surface area
• Dual tear & fatigue resistant poly-cotton spider with woven tinsel leads
• Fatigue resistant and reduced strain "stitched on" flexible lead wire design
• Proprietary all metal, radially oriented compression input terminal assembly
• Optimized motor magnetics with extended pole and bumped vented backplate
• High temp 2.5" voice coil w/ spun-laced Nomex™ insulating re-inforcement collar
• Die-Cast aluminum soft-touch painted trim ring allows for optional integrated grill
• Mounting Depth: 6.18"
• Cutout Diameter: 9.13"
• Magnet Weight: 81 oz
• Frequency Response: 28 - 250 Hz
• Xmax: 15.9mm
• Sensitivity: 82 dB @ 1 watt / 1 meter
• Recommended Ported Enclosure: 1.40ft³
• Recommended Sealed Enclosure: 0.59ft³
• Matching Amplifiers: (one subwoofer)
• Rockford Fosgate R750-1D, Parallel @2ohms
  ✔ Preferred Match
• Rockford Fosgate P1000X1bd, Parallel @2ohms
• Rockford Fosgate R500X1D, Parallel @2ohms
• Matching Amplifier: (two subwoofers)
• Rockford Fosgate P1000X1bd, Parallel @1ohm
  ✔ Preferred Match
• Rockford Fosgate R1200-1D, Parallel @1ohm
