Rockford-Fosgate | SKU:
R750-1D

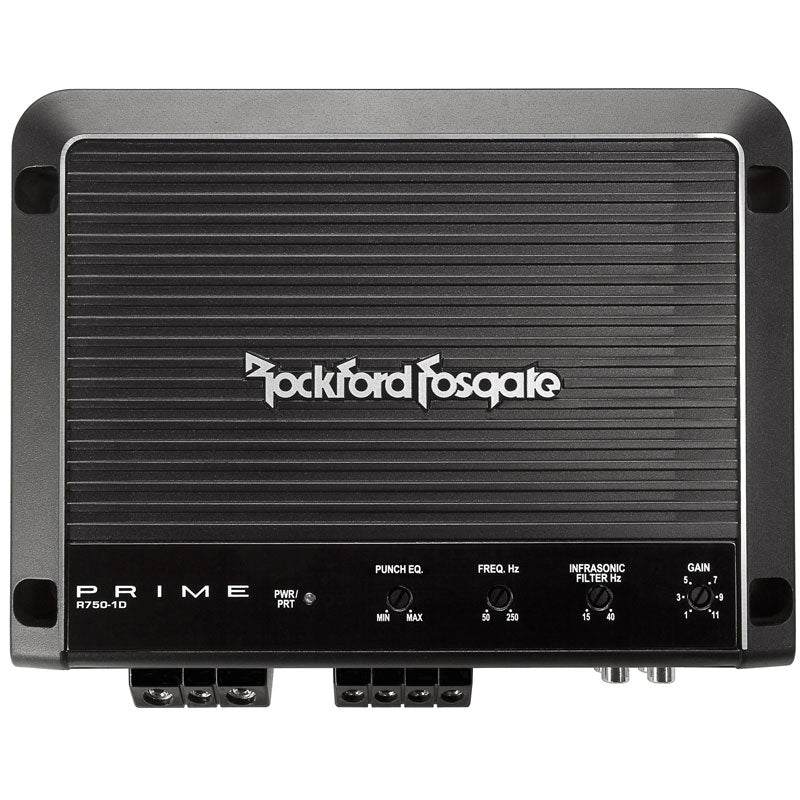

Rockford-Fosgate Prime R750-1D
$389.99
Unit price
/
Unavailable
Rockford-Fosgate Prime R750-1D - Rockford-Fosgate / R750-1D is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
2-3 Processing Business Days. All USA order only - Ship 5-7 Business Days. We offer Expedited delivery on all eligible orders.
Description
Description
Features:
- Rockford Fosgate Prime Series R750-1D
- Class-D Full Range 1-Ohm Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohms: 250 watts x 1 chan.
- 2 ohms: 500 watts x 1 chan.
- 1 ohm: 750 watts x 1 chan.
- CEA-2006 Compliant Amplifier
- Pulse Width Modulated MOSFET power supply
- Wired remote bass level control included
- LED power (green) and protect (red) indicators
- Soft start turn-on
- Nickel-plated RCA level inputs
- Nickel-plated screw terminals
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- Input sensitivity: 150mV - 4V
- Frequency Response: 20 - 250Hz
- Total Harmonic Distortion (THD): <1.0%
- Signal to Noise Ration: 100dB
- Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
- Subsonic (infrasonic) filter: 15 - 40 Hz , 12 dB/octave
- Variable Bass Boost: 0 to +18 dB bass boost at 45 Hz
- Fuse Rating: 100A x 1 (recommended, not included)
- 12 AWG speaker wire gauge outputs
- Weight: 7.825 lbs
- Dimensions: 9.10"W x 6.77"L x 1.97"H
Specifications:
Power Specifications - Subwoofer Channel:
- RMS Power @ 4 ohms: 250 watts x 1 channels
- RMS Power @ 2 ohms: 500 watts x 1 channels
- RMS Power @ 1 ohm: 750 watts x 1 channels
Amplifier Specifications:
- Amplifier Series: Prime (Rockford Fosgate)
- Amplifier Class: D
- Number of Channels: 1 - Mono
- Total Peak Power Output: 1500 watts
- Total RMS Power Output: 750 watts
- Maximum Input Gauge Size: 4 AWG
- Minimum Impedance Unbridged: 1 ohms
- Minimum Impedance Bridged: Not Bridgeable
- THD at Rated RMS Power: 1.0%
- Speaker Level Inputs: No
- Preamp Outputs: 1 pair
- Built-in Crossover: Low-Pass (LP), Subsonic
- Low-Pass Crossover Frequency: 50 - 250 Hz
- Subsonic Filter: 15 - 40 Hz
- Signal-to-Noise Ratio: 100 dB
- Bass Boost: 0 - 18 dB
- Bass/Gain Remote: Yes
- Fan Cooled: No
- Fuse Rating: 100A X 1 In-Line Fuse Recommended
- Strappable: No
- CEA-2006 Compliant: Yes
