Rockford-Fosgate | SKU:
R500X1D

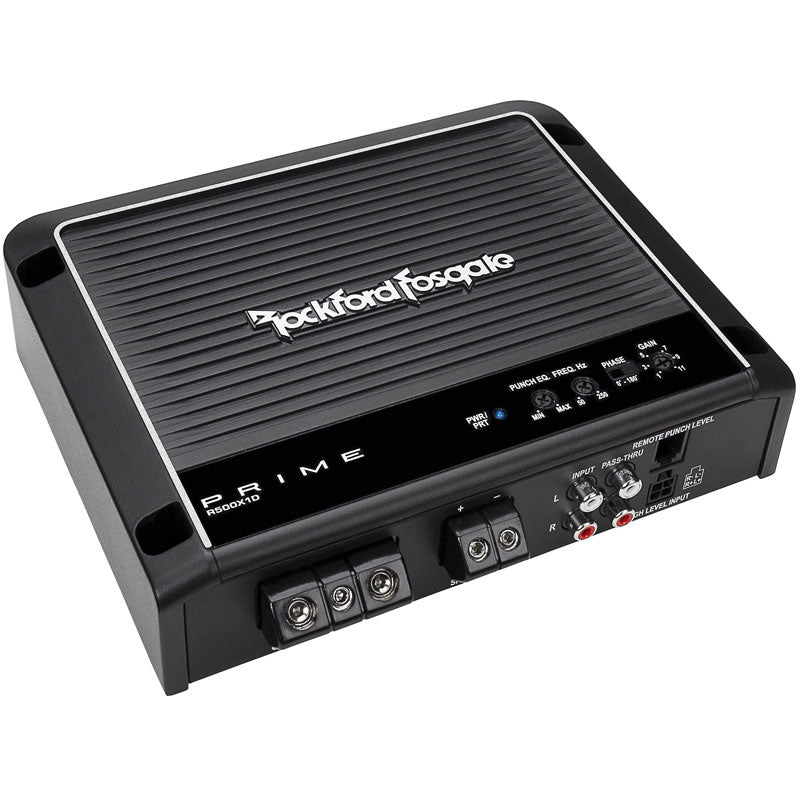

Rockford-Fosgate Prime R500X1D
$229.99
Unit price
/
Unavailable
Rockford-Fosgate Prime R500X1D - Rockford-Fosgate / R500X1D is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
2-3 Processing Business Days. All USA order only - Ship 5-7 Business Days. We offer Expedited delivery on all eligible orders.
Description
Description
Features:
- Prime Series Class D Monoblock Car Amplifier
- RMS Power Rating:
- 4 ohms: 300 watts x 1 chan.
- 2 ohms: 500 watts x 1 chan.
- CEA-2006 compliant amplifier
- Efficient Class-D circuit topology
- 12dB/octave Butterworth crossover
- RCA pass-thru outputs
- On-board Punch EQ with +18dB boost @ 45Hz.
- High level inputs
- Remote PLC (Punch Level Control)
- 0°/180° Phase Switch
- Real time output and power supply thermal sensing
- Cast aluminum heatsink
- 4 Gauge power/ground connectors
- MOSFET power supply
- Over current protection
- Short circuit protection
- Muted turn on
- Frequency Response: 20 - 250 Hz +/- 1 dB
- Efficiency: 89% @ 4-ohm
- Total Harmonic Distortion: <1.0%
- Signal to Noise Ratio: >100 dB
- Damping Factor: >200 dB
- Input Sensitivity: 150 mV - 4V
- Recommended Fuse: 50A x 1 (not included)
- 8-gauge speaker wire terminals
- Dimensions: 8.50"L x 6.80"W x 2.00"H
Specifications:
Power Specifications - Subwoofer Channel:
- RMS Power @ 4 ohms: 300 watts x 1 channels
- RMS Power @ 2 ohms: 500 watts x 1 channels
Amplifier Specifications:
- Amplifier Series: Prime (Rockford Fosgate)
- Amplifier Class: D
- Number of Channels: 1 - Mono
- Total Peak Power Output: 1000 watts
- Total RMS Power Output: 500 watts
- Maximum Input Gauge Size: 4 AWG
- Minimum Impedance Unbridged: 2 ohms
- Minimum Impedance Bridged: Not Bridgeable
- THD at Rated RMS Power: <1.0%
- Speaker Level Inputs: Yes
- Preamp Outputs: 1 pair
- Built-in Crossover: Low-Pass (LP)
- Low-Pass Crossover Frequency: 50 - 250 Hz
- Signal-to-Noise Ratio: >100 dB
- Bass Boost: 0 - 18 dB
- Bass/Gain Remote: Yes
- Fuse Rating: 50A X 1 In-Line Fuse Recommended
- Strappable: No
- CEA-2006 Compliant: Yes
