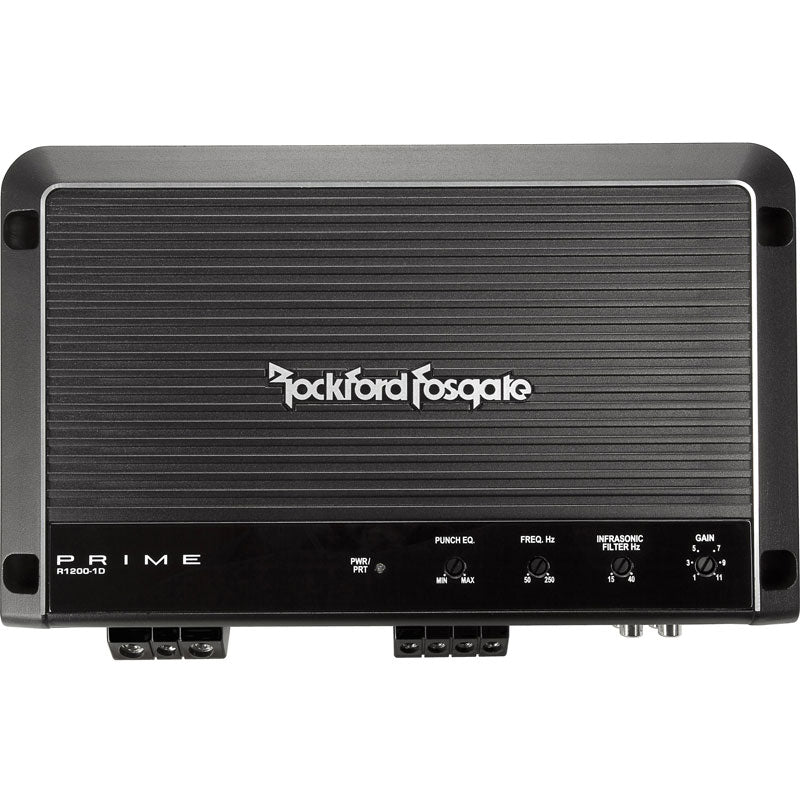

Rockford-Fosgate Prime R1200-1D

Features:

• Rockford Fosgate Prime Series R1200-1D
• Class-D 1-Ohm Stable Monoblock Amplifier
• RMS Power Rating:
• 4 ohms: 400 watts x 1 chan.
• 2 ohms: 800 watts x 1 chan.
• 1 ohm: 1200 watts x 1 chan.
• CEA-2006 Compliant Amplifier
• Pulse Width Modulated MOSFET power supply
• Wired remote bass level control included
• LED power (green) and protect (red) indicators
• Soft start turn-on
• Nickel-plated RCA level inputs
• Nickel-plated screw terminals
• Preamp RCA outputs to daisy chain multiple amps
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Heavy duty aluminum alloy heat-sink for extreme heat dissipation
• Input sensitivity: 150mV - 4V
• Frequency Response: 20 - 250Hz
• Total Harmonic Distortion (THD): <1.0%
• Signal to Noise Ration: 100dB
• Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
• Subsonic (infrasonic) filter: 15 - 40 Hz , 12 dB/octave
• Variable Bass Boost: 0 to +18 dB bass boost at 45 Hz
• Fuse Rating: 150A x 1 (recommended, not included)
• 12 AWG speaker wire gauge outputs
• Dimensions: 11.06"W x 6.77"L x 1.97"H

Specifications:

Power Specifications - Subwoofer Channel:

• RMS Power @ 4 ohms: 400 watts x 1 channels
• RMS Power @ 2 ohms: 800 watts x 1 channels
• RMS Power @ 1 ohm: 1200 watts x 1 channels

Amplifier Specifications:

• Amplifier Series: Prime (Rockford Fosgate)
• Amplifier Class: D
• Number of Channels: 1 - Mono
• Total Peak Power Output: 2400 watts
• Total RMS Power Output: 1200 watts
• Maximum Input Gauge Size: 4 AWG
• Minimum Impedance Unbridged: 1 ohms
• Minimum Impedance Bridged: Not Bridgeable
• THD at Rated RMS Power: 1.0%
• Speaker Level Inputs: No
• Preamp Outputs: 1 pair
• Built-in Crossover: Low-Pass (LP), Subsonic
• Low-Pass Crossover Frequency: 50 - 250 Hz
• Subsonic Filter: 15 - 40 Hz
• Signal-to-Noise Ratio: 100 dB
• Bass/Gain Remote: Yes
• Fan Cooled: No
• Fuse Rating: 150A In-Line Fuse Required
• Strappable: No
• CEA-2006 Compliant: Yes
• Sonic Certified Amplifier: Not Tested
