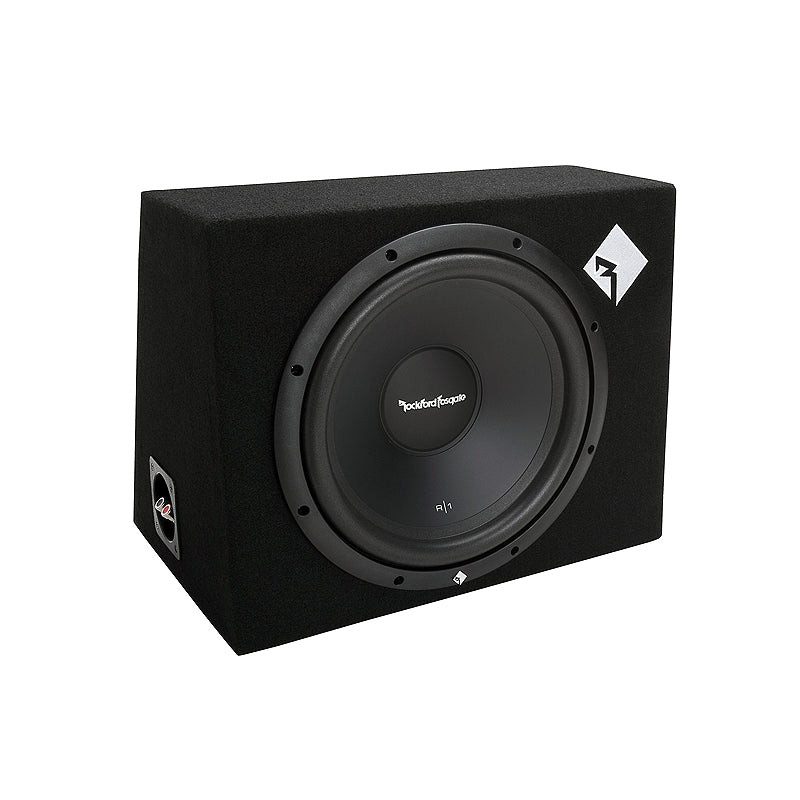

Rockford-Fosgate Prime R1-1X12

Features:

Subwoofer Features:

• 12" 4 ohm Prime Series Subwoofer
• Power Handling:
• Peak: 400 watts
• RMS: 200 watts
• Recommended power range: 50 - 200 watts RMS
• Impedance: 4 ohms
• High quality fiber cone
• Black raised surround
• Up to 12 AWG compression terminals
• 2" anodized aluminum voice coil former
• Frequency response: 25-250 Hz
• Sensitivity: 90dB

General Enclosure Features:

• 12" sealed hatchback enclosure
• Subwoofer mounting depth: 5"
• Subwoofer cutout diameter : 10.94"
• Dimensions: 7-1/4"TD x 13-1/4"BD x 17-3/4"W x 14-3/8"H

Specifications:

Subwoofer Specifications:

• Subwoofer Series: Prime R1 (Rockford Fosgate)
• Subwoofer Size: 12"
• Impedance (Per Voice Coil): 4 ohms
• RMS Power Handling: 200 watts
• Peak Power Handling: 400 watts
• Woofer Composition: Fiber Impregnated Cone
• Sensitivity: 90 dB
• Frequency Response: 25 - 250 Hz
• Xmax (millimeters): 6.3 mm

Enclosure Specifications:

• Box Type: Sealed
• Number of Subs/Speakers: 1
• Box Style/Shape: Hatchback Style, Angled Back
• Height: 14-3/8"
• Width: 17-3/4"
• Depth: 13-1/4"
• Second Depth: 7-1/4"
• Wood Thickness: 5/8"
• Number of Terminals: 1
• Terminal Type: Spring posts
• Box Exterior Color: Black
• Box Finish: Carpet
