Rockford-Fosgate | SKU:
M600-5

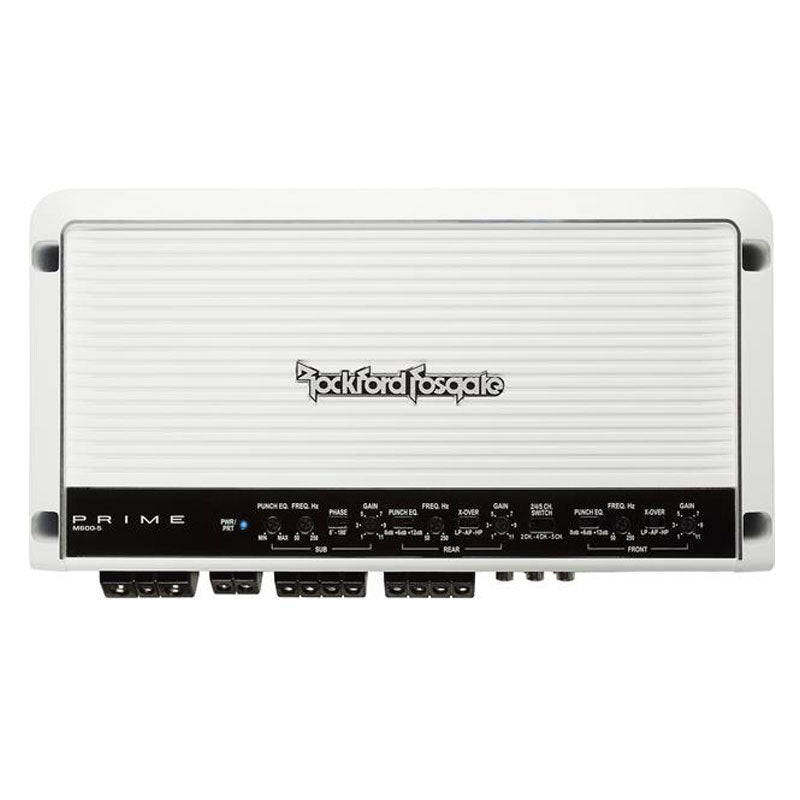

Rockford Fosgate Prime M600-5
$539.99
Unit price
/
Unavailable
Rockford Fosgate Prime M600-5 - Rockford-Fosgate / M600-5 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
2-3 Processing Business Days. All USA order only - Ship 5-7 Business Days. We offer Expedited delivery on all eligible orders.
Description
Description
Features:
- Prime Series 5-Channel Class AB/D Amplifier
- RMS Power Rating:
- 4 ohms: 50 watts x 4 chan. + 200 watts x 1 chan.
- 2 ohms: 75 watts x 4 chan. + 300 watts x 1 chan.
- Bridged, 4 ohms: 150 watts x 2 chan.
- Max power output: 600 watts x 5 chan.
- MOSFET power supply
- Remote punch level control included
- Marine grade two part epoxy coating on circuit boards
- Real time output and power supply thermal sensing
- 12 dB/Oct Butterworth crossovers
- Separate front, rear and subwoofer gain control
- Muted turn-on
- Speaker-level (high-level) inputs
- On board Punch EQ control
- RCA and high level inut with 2/4/5 channel select
- 2-way protection circuitry (short ciruit and over current)
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty cast aluminum heat-sink
- Input sensitivity:
- Low level: 150mV-4V
- High level: 450mV-12V
- Variable high-pass filter (50-250 Hz, 12 dB/octave)
- Variable low-pass filter (50-250 Hz, 12 dB/octave)
- CEA-2006 compliant amplifier
- Dimensions: 6.77"W x 13.99"L x 1.98"H
Power Subwoofer Channel:
- RMS Power @ 4 ohms: 50 watts x 4 channels
- RMS Power @ 2 ohms: 75 watts x 4 channels
- Bridged RMS Power: 150 watts x 2 channels
- Peak Power Output: 600 watts x 5 channels
Specifications:
- Marine Certified: Yes
- Amplifier Class: AB / D
- Number of Channels: 5
- Total Peak Power Output: 695 watts
- Total RMS Power Output: 600 watts
- Maximum Input Gauge Size: 4 AWG
- Minimum Impedance Unbridged: 2 ohms
- Minimum Impedance Bridged: 4 ohms
- THD at Rated RMS Power: 1%
- Speaker Level Inputs: Yes
- Preamp Outputs: 3 pairs
- Built-in Crossover: Low-Pass (LP),High-Pass (HP)
- High-Pass Crossover Frequency: 50 - 250 Hz
- Low-Pass Crossover Frequency: 50 - 250 Hz
- Signal-to-Noise Ratio: 80 dB
- Bass/Gain Remote: No
- Fan Cooled: No
- CEA-2006 Compliant: Yes
