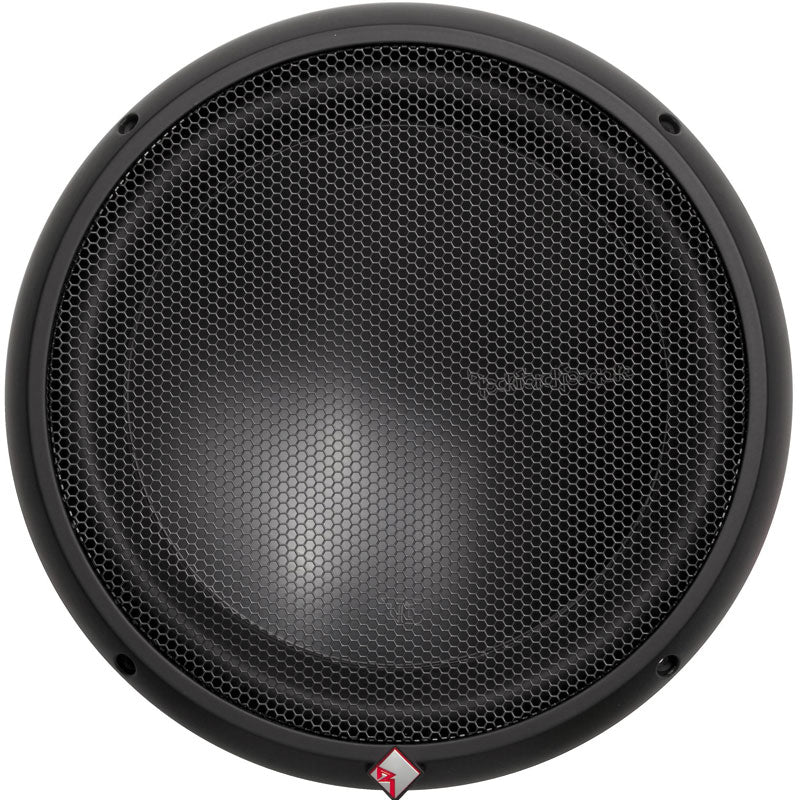

Rockford-Fosgate Power T0D412

Features:

Power Handling:

• 700W RMS
• 1400W Max

General Features:

• Anodized aluminum heat sinking dust cap
• Anodized aluminum voice coil former
• High-temp voice coil with spun-laced Nomex® re-inforcement collar
• Kevlar fiber reinforced paper cone
• Optimized and matched magnetic and complicance geometry
• Optimized pole piece and spider venting
• Periodic-stitched fatigue resistant tinsel lead wire
• Proprietary 8 AWG insulated allmetal input spring terminal connection
• Rigid die-cast aluminum basket

General Specifications:

• Voice Coil Diameter: 3"
• Speaker Connector: Compression Terminal
• Fs (Hz): 26
• Qts: 0.53
• Vas (Liters): 55.1
• SPL (dB @ 1w/1m): 84.1
• Xmax (mm): 14.8
• Woofer Displacement: 0.308 cu.ft.
• Cutout Diameter: 11.25"
• Mounting Depth: 6.875"

Specifications:

• Sensitivity: 84 dB
• Peak Power Handling: 1400 Watts
• Impedance: 4 Ohm
• Diameter: 12 Inch
• Shallow Mount: No
• Number of Voice Coils: Dual
• Suggested Sealed Box Volume: 1.25 Cubic ft.
• Suggested Ported Box Volume: 1.75 Cubic ft.
• Mounting Depth: 6.9 Inches
