Pioneer  |  SKU: GM-A6704

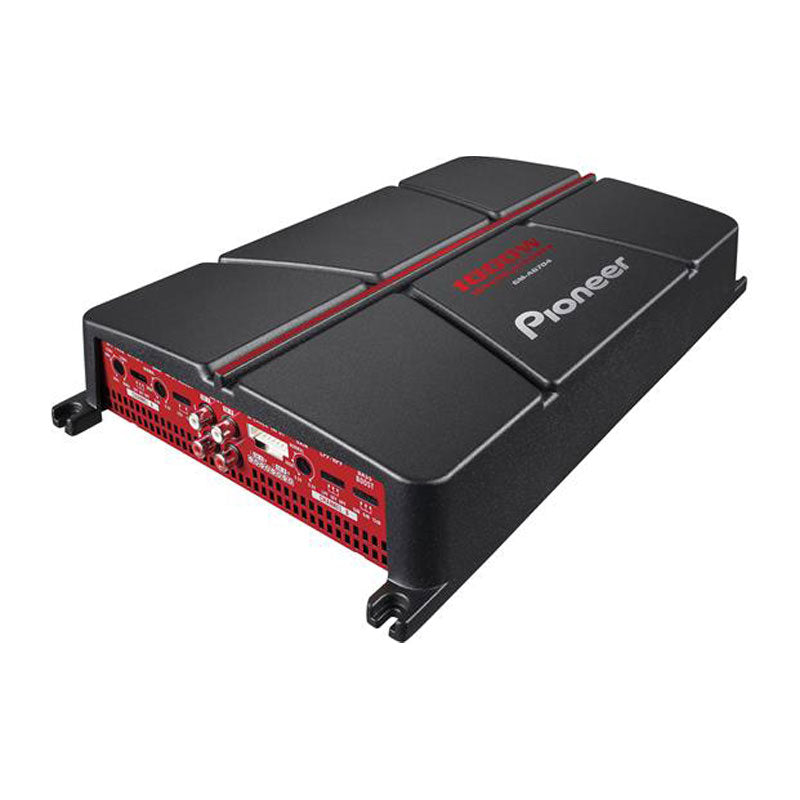

Pioneer GM-A6704

$190.00

Manufacturer
Model

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Highlight title

Text to highlight a key feature of your product

Description

Features:

  • Pioneer A-Series GM-A6704
  • Class-AB FullRange 2-Ohm Stable 4-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 60 watts x 4 chan.
    • 2 ohms: 95 watts x 4 chan.
    • Bridged, 4 ohms: 190 watts x 2 chan.
  • Max power output: 1000 watts.
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • Balanced Isolator Input Circuit
  • LED power (on) and protect (off) indicators
  • Soft start turn-on
  • 4, 3 or 2 channel operation
  • Speaker-level (high-level) inputs with Signal Sensing Turn-on
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 300mV - 6.5V
    • High level: 3V - 26V
  • Frequency Response: 10 - 70,000 Hz
  • Total Harmonic Distortion (THD): <0.05%
  • Signal to Noise Ration: >95 dB
  • Selectable crossover modes (Ch A&B): LPF / OFF / HPF
  • Crossover frequency Ch A: 80hz, 12 dB/octave
  • Variable crossover frequency (Ch B): 40 - 500 Hz, 12 dB/octave
  • Variable Bass Boost (Ch B): 0 to +12 dB bass boost at 50 Hz

Power Full Range Channels:

  • RMS Power @ 4 ohms: 60 watts x 4 channels
  • RMS Power @ 2 ohms: 95 watts x 4 channels
  • Bridged RMS Power: 190 watts x 2 channels
  • Peak Power @ 4 ohms: 170 watts x 4 channels
  • Peak Power @ 2 ohms: 250 watts x 4 channels
  • Bridged Peak/Max Power: 500 watts x 2 channels

Specifications:

  • Amplifier Series: GM Series (Pioneer)
  • Amplifier Class: AB
  • Number of Channels: 4
  • Total Peak Power Output: 1000 watts
  • Total RMS Power Output: 380 watts
  • Maximum Input Gauge Size: Any Gauge with use of Spade Terminal AWG
  • Minimum Impedance Unbridged: 2 ohms
  • Minimum Impedance Bridged: 4 ohms
  • THD at Rated RMS Power: 0.05%
  • Speaker Level Inputs: Yes
  • Preamp Outputs: No
  • Built-in Crossover: Low-Pass (LP),High-Pass (HP),Full (AP)
  • High-Pass Crossover Frequency: 40 - 500 Hz
  • Low-Pass Crossover Frequency: 40 - 500 Hz
  • Signal-to-Noise Ratio: 95 dB
  • Bass Boost: 0 - 12 dB
  • Bass/Gain Remote: No
  • Fan Cooled: No
  • Fuse Rating: 25A x 2
  • Strappable: No
  • CEA-2006 Compliant: Yes
