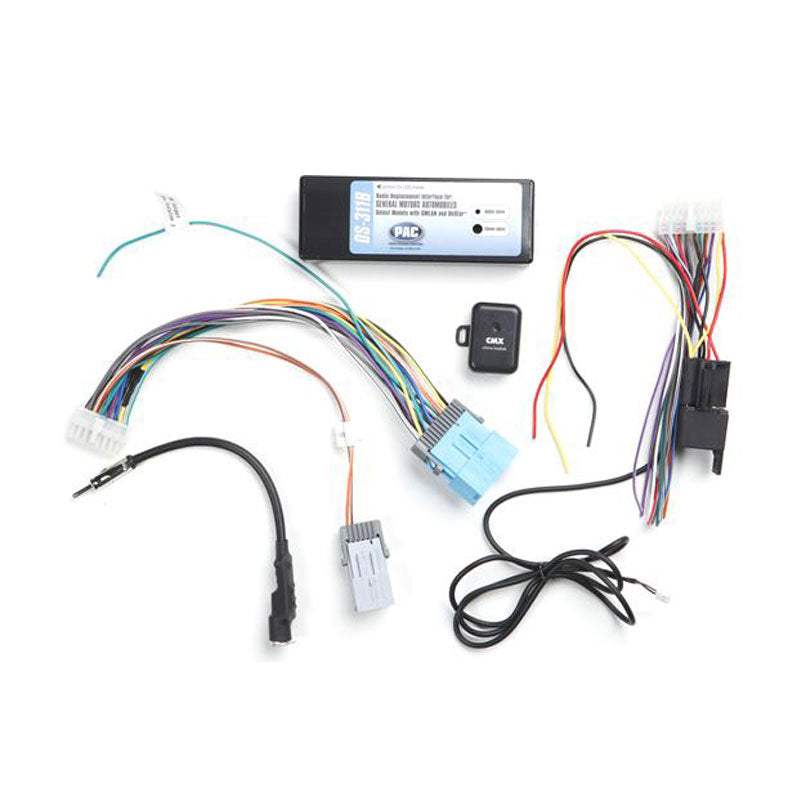

PAC OS-311B OnStar® Radio Replacement Interface for Select 11-bit LAN General Motors Vehicles

Description

Retains OnStar® system functionality when the factory radio is replaced in an 11-bit GMLAN vehicle. Generates all safety warning chimes and audible turn signal indicators.

Features:

• Radio Replacement Retention Interface for Select 2004-2009 GMLAN 11Bit Vehicles with OnStar
• Plug and play interface
• Provides an accessory turn on wire and retains the factory Retained Accessory Power (RAP) feature
• Provides a steering wheel control wire output that can be connected directly to a SWI-JACK, SWI-PS,or SWI-X
• Retains all warning chimes and turn signal/hazard clicks
• Steering wheel Mute/OnStar button functions just like factory. Initiate OnStar or mute aftermarket radio with optional steering wheel control interface

Compatibility List:

• Pontiac
• 2005 - 2009 G6
• Chevrolet
• 2005 - 2006 Cobalt
• 2004 - 2007 Malibu/Malibu Maxx
• 2008 - 2008 Malibu Classic

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
