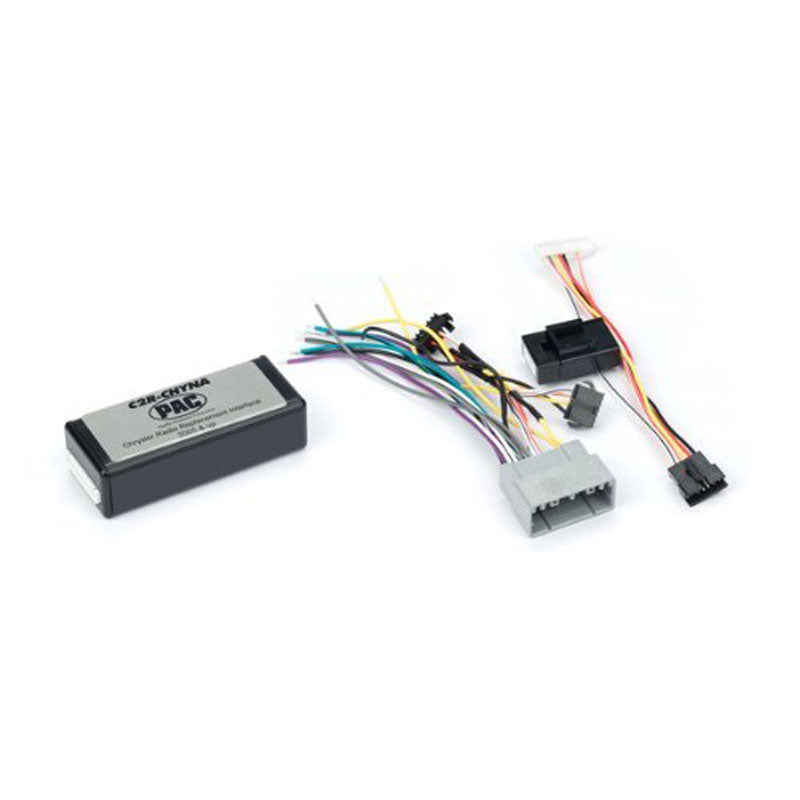

PAC C2R-CHYNA

Features:

Provides data-controlled illumination and timed accessory outputs for adding a non-navigation radio into a Chrysler, Dodge, or Jeep vehicle.

• Data-controlled RAP accessory output wire.
• Data-controlled illumination output wire.
• Keeps data bus intact for vehicle service and emissions testing

Compatibility:

• Only compatible when removing a REF, REC, RAQ, and RAK Series radio. This will be indicated on the front of the factory radio.
• Does not retain VES, uConnect, factory amplifiers

Features:

• Radio Replacement Interface for Select 2004-up Chrysler, Dodge and Jeep Vehicles with Radio Models REF, REC, RAQ, and RAK
• Provides accessory output and park light signal output
• Retains power after the key is off until a door is opened
• If the vehicle has steering wheel controls use the SWI-CAN interface and either the SWI-X, SWI-ALP, SWI-PS or SWI-ECL to use the steering wheel controls to control the new stereo

Compatibility List:

• Dodge:
• 2004-2007 Durango
• 2005-2007 Magnum
• 2005-2007 Dakota
• 2005-2007 Charger
• 2006-2007 Caliber
• 2006-2008 Ram
• Chrysler:
• 2005-2007 300
• 2007 Aspen
• 2007-2008 PT Cruiser
• Jeep:
• 2005-2007 Grand Cherokee
• 2005-2007 Commander
• 2007-2008 Compass
• 2007-2008 Patriot
• Mitsubishi:
• 2006-2007 Raider

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
