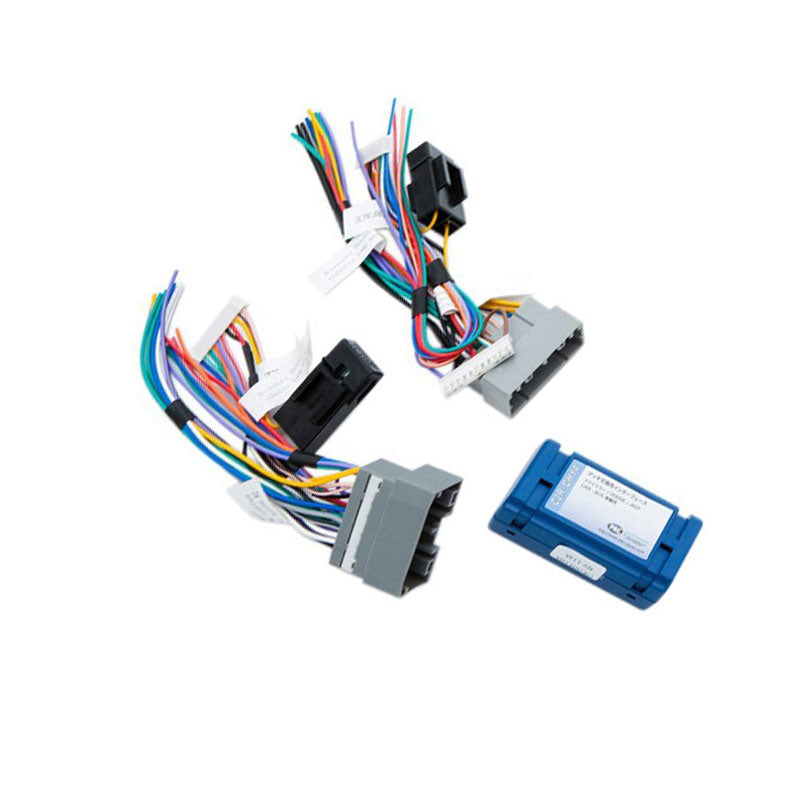

PAC C2R-CHY4

Description

Provides navigation trigger wires and timed accessory output for replacing the factory radio and retains the factory-installed amplified audio system. Use the provided Steering Wheel Control output plug with a steering wheel interface module to retain all factory controls' function.

Features:

• Replacement interface harness for select Chrysler vehicles with CAN Bus
• Compatible with amplified or non-amplified systems
• Requires the use SWI-CAN Module to retain steering wheel controls
• Retain Accessory Power (RAP) 12V Output
• VSS, illumination, parking brake and reverse trigger output
• Digital amp turn-on

Compatibility List:

• Chrysler:
• 2011 - 2014 200
• 2005 - 2010 300
• 2007 - 2009 Aspen
• 2007 - 2010 PT Cruiser
• 2007 - 2010 Sebring
• 2008 - 2014 Town & Country
• Dodge:
• 2007 - 2013 Avenger
• 2007 - 2012 Caliber
• 2008 - 2014 Challenger
• 2006 - 2010 Charger
• 2005 - 2008 Dakota
• 2004 - 2013 Durango
• 2009 - 2013 Grand Caravan
• 2009 - 2010 Journey
• 2005 - 2008 Magnum
• 2007 - 2010 Nitro
• 2006 - 2011 Ram Pickup
• Jeep:
• 2006 - 2010 Commander
• 2007 - 2013 Compass
• 2005 - 2013 Grand Cherokee
• 2008 - 2010 Liberty
• 2007 - 2013 Patriot
• 2007 - 2014 Wrangler
• Mitsubishi:
• 2006 - 2009 Raider
• Volkswagen:
• 2009 - 2013 Routan

Connections:

• Yellow 12V Constant
• Red 12V Accessory
• Black - Ground
• Orange Dash Light Dimmer/Illumination
• Green Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White Left Front Speaker (+)
• White with Black Stripe Left Front Speaker (-)
• Purple Right Rear Speaker (+)
• Purple with Black Stripe Right Rear Speaker (-)
• Gray Right Front Speaker (+)
• Gray with Black Stripe Right Front Speaker (-)
