Metra | SKU:
71-1781

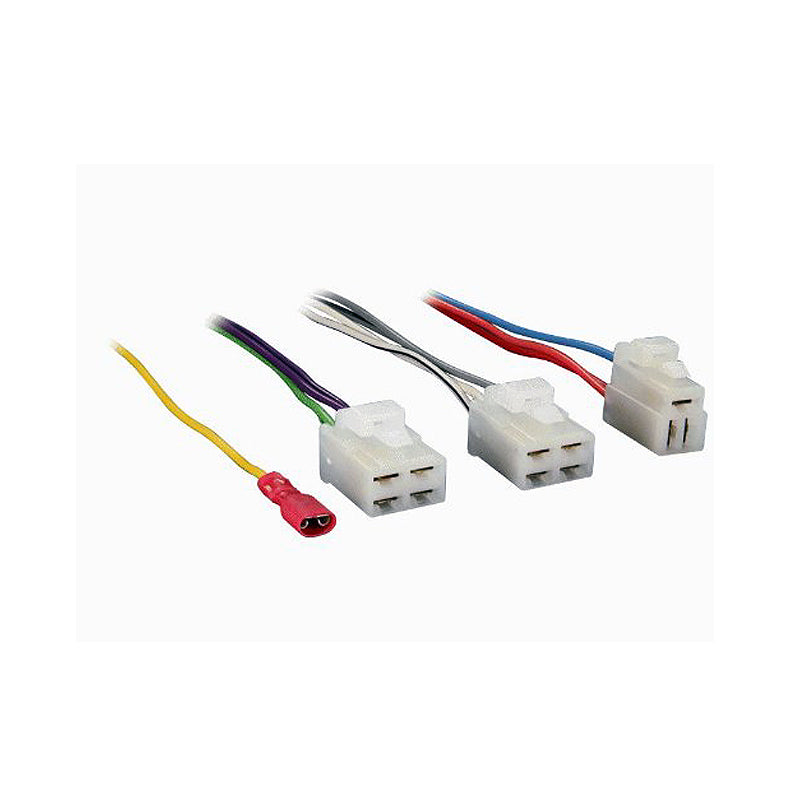

Metra 71-1781
$0.00
Unit price
/
Unavailable
Metra 71-1781 - Metra / 71-1781 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
2-3 Processing Business Days. All USA order only - Ship 5-7 Business Days. We offer Expedited delivery on all eligible orders.
Description
Description
Product Features:
- Plugs into OEM Radio
- Power/4 Speaker
- Two 4-pin connectors, one 3-pin connector, and one 1-pin connector
- Compatible with select 1986-1993 Mazda trucks
- Harness is designed to plug in the factory radio
- Can be used to repair a harness where the plugs have been cut off or damaged
Connections:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange – Dash Light Dimmer/Illumination
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
