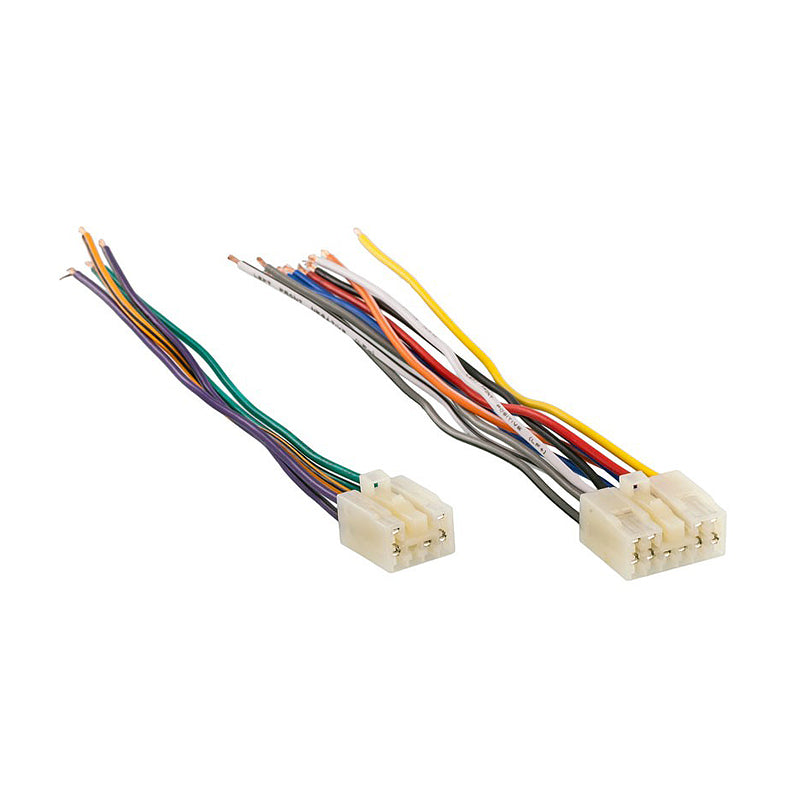

Metra 71-1761

Product Features:

• Plugs into OEM Radio
• Power/4 Speaker
• One 10-pin connector and one 6-pin connector
• Harness is designed to plug into the factory radio
• Can be used to repair a harness where the plugs have been cut off or damaged
• For select 1987-2007 Toyota and Scion vehicles

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

Compatibility List:

• Scion:
• 2005 TC
• 2004 - 2005 XA
• 2004 - 2005 XB
• Toyota:
• 1987 - 2005 4-Runner
• 1995 - 1999 Avalon
• 1987 - 2005 Camry
• 1987 - 2004 Celica
• 1987 - 2005 Corolla
• 2000 - 2005 Monte Carlo
• 1988 - 1993 Cressida
• 2000 - 2002 Echo
• 2001 - 2004 Highlander
• 1987 - 1996 Landcruiser
• 1987 - 2002 MR2
• 2004 - 2005 Prius
• 1996 - 2004 RAV4
• 2001 - 2004 Sequoia
• 1996 - 2004 Sienna
• 1995 - 2005 Tacoma
• 1999 - 2004 Tundra
