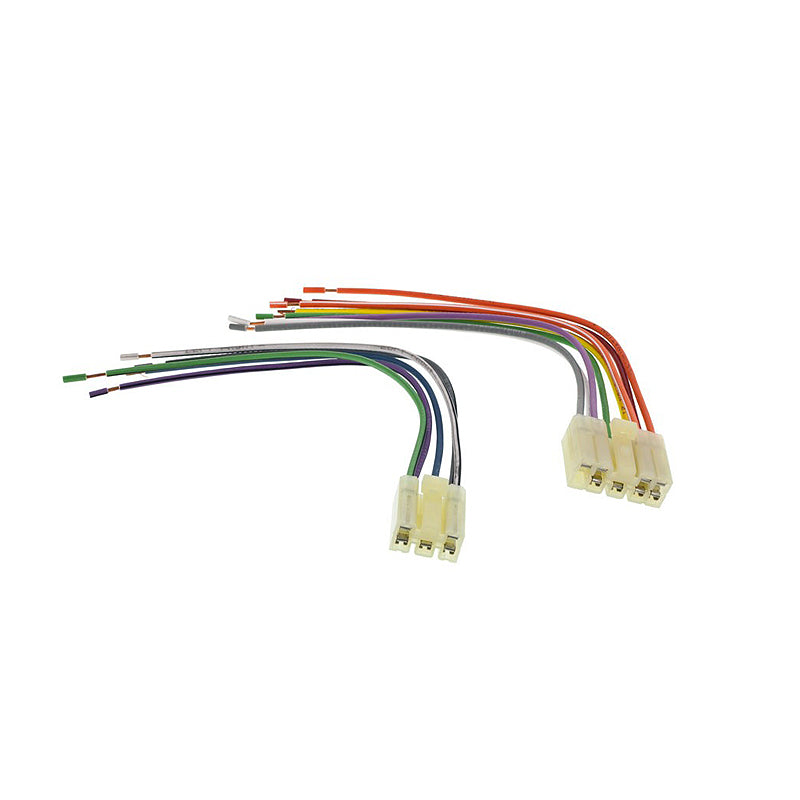

Metra 71-1743

Product Features:

• Reverse Wiring Harness
• Plugs into OEM Radio
• Power/4 Speaker
• One 9-pin plug and one 5-pin plug
• Harness is designed to plug into the factory radio
• Can be used to repair a harness where the plugs have been cut off or damaged
• For select 1987-1996 Dodge/Mitsubishi vehicles

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

Compatibility List:

• Dodge:
• 1987 - 1994 Colt
• 1987 - 1994 Ram Pickup
• 1990 - 1994 Stealth
• Mitsubishi:
• 1987 - 1994 Galant
• 1987 - 1989 Mirage
• 1987 - 1989 Raider
• 1990 - 1994 Montero
• 1991 - 1994 Eclipse
• 199 - 1994 3000GT
