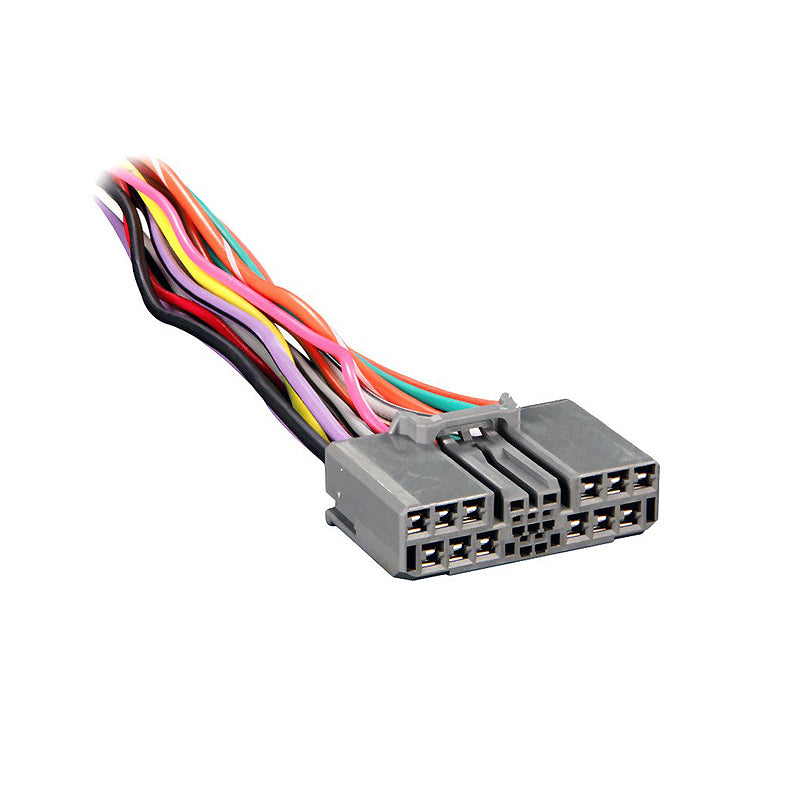

Metra 71-1722

Product Features:

• Plugs into OEM Radio
• Power/4 Speaker
• 17-pin connector
• Harness is designed to plug in the factory radio
• Can be used to repair a harness where the plugs have been cut off or damaged

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange with White Stripe – Positive Illumination Wire
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)
• Gray with Black Stripe – Right Front Speaker (-)
• Gray with Black Stripe – Right Front Speaker (-)
• Pink - K-Line For Off-Board Communication
• Tan with Orange Stripe - Security System
• White with Green Stripe - Vehicle Speed Wire
• Orange with Black Stripe - Negative Illumination Wire (Must be Grounded if connecting Orange with White Stripe)

Compatibility List:

• Honda:
• 2006 - 2009 Civic (excluding DX Model)
• 2007 - 2008 Fit
• 2007 - 2009 CRV
• 2008 - 2009 Odyssey
