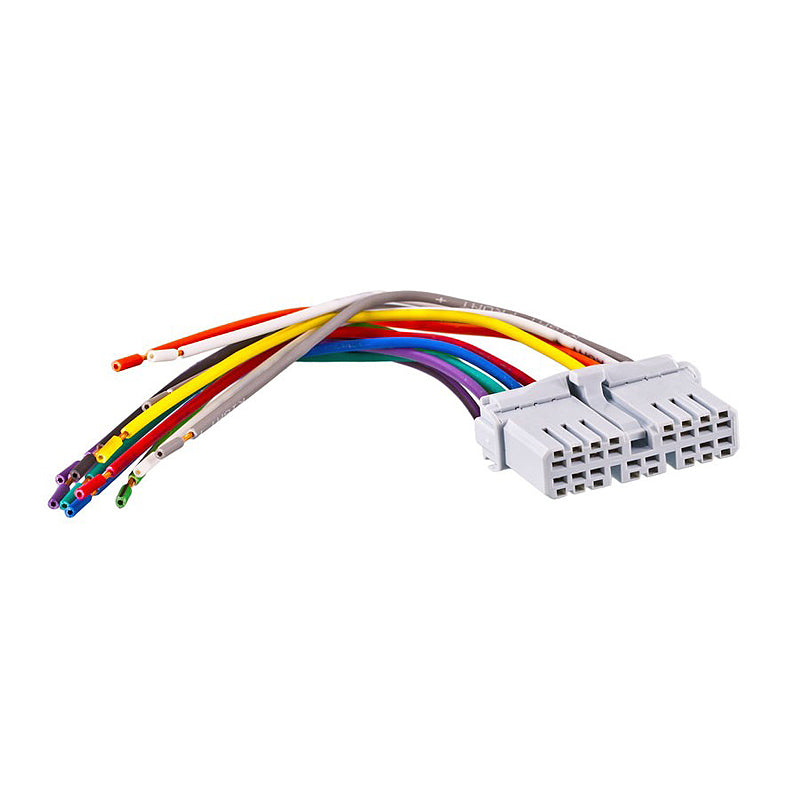

Metra 71-1720

Product Features:

• Plugs into OEM Radio
• Power/4 Speaker
• 16-pin connector
• For select 1986-1998 Honda and Acura vehicles
• Harness is designed to plug into the factory radio
• Can be used to repair a harness where the plugs have been cut off or damaged

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

Compatibility List:

• Acura:
• 1997 - 1998 CL
• 1986 - 1998 Integra
• 1996 - 1998 RL
• 1995 - 1998 TL
• Honda:
• 1986 - 1997 Accord
• 1986 - 1995 Civic
• 1997 - 1998 CRV
• 1986 - 1991 CRX
• 1993 - 1997 Del Sol
• 1995 - 1998 Odyssey
• 1986 - 1998 Prelude
