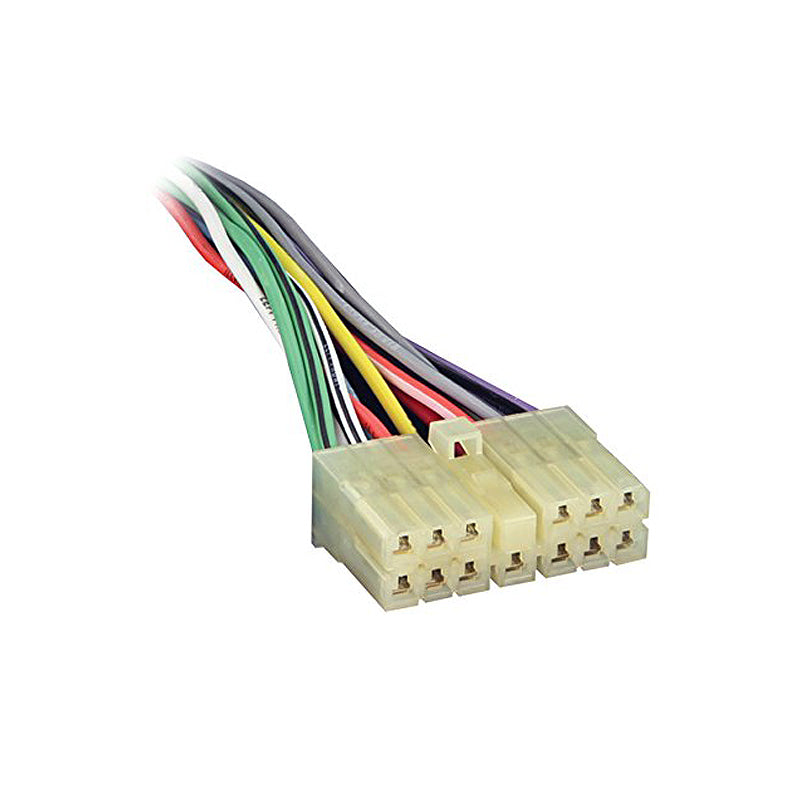

Metra 71-1692

Product Features:

• Universal import lead into the OEM Radio
• Plugs into OEM Radio
• Power/4 Speaker
• Harness is designed to plug into the factory radio
• Can be used to repair a harness where the plugs have been cut off or damaged

Connections:

• Yellow – 12V Constant
• Red – 12V Accessory
• Black - Ground
• Orange – Dash Light Dimmer/Illumination
• Green – Left Rear Speaker (+)
• Green with Black Stripe Left Rear Speaker (-)
• White – Left Front Speaker (+)
• White with Black Stripe – Left Front Speaker (-)
• Purple – Right Rear Speaker (+)
• Purple with Black Stripe – Right Rear Speaker (-)
• Gray – Right Front Speaker (+)
• Gray with Black Stripe – Right Front Speaker (-)

Compatible with the following vehicles:

• Chrysler:
• 1987 - 1989 Conquest
• Dodge:
• 1987 - 1994 Colt
• 1987 - 1989 Raider
• 1987 - 1993 Ram Pickup
• Mitsubishi:
• 1987 - 1988 Cordia
• 1990 - 1994 Eclipse
• 1992 - 1994 Expo
• 1987 - 1993 Galant
• 1987 - 1994 Mighty Max
• 1987 - 1994 Mirage
• 1987 - 1994 Montero
• 1987 - 1991 Van
