Rockford-Fosgate  |  SKU: R300X4

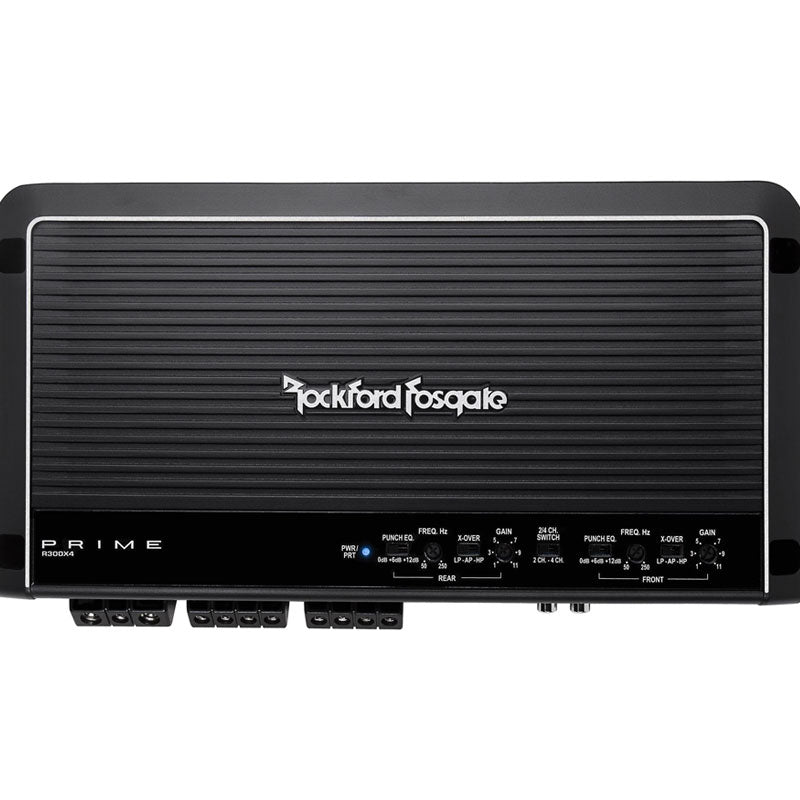

Rockford-Fosgate Prime R300X4

$229.99

Manufacturer
Model

Care information

Display general product information or specific product information using metafields.

Delivery and Shipping

Add some general information about your delivery and shipping policies.

Add a stand out message for your customers

Highlight title

Text to highlight a key feature of your product

Description

Features:

  • Prime Series Full Range Class AB 4-Channel Car Amplifier
  • RMS Power Rating:
    • 4 ohms: 50 watts x 4 chan.
    • 2 ohms: 75 watts x 4 chan.
    • Bridged, 4 ohms: 150 watts x 2 chan.
  • CEA-2006 Compliant Amplifier
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • 4, 3 or 2 channel operation
  • Speaker-level (high-level) inputs with included molex plugs
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Input sensitivity:
    • Low level: 150mV - 4V
    • High level: 450mV - 12V
  • Frequency Response: 20 - 20,000 Hz
  • Total Harmonic Distortion (THD): <1%
  • Signal to Noise Ration: >100 dB
  • Selectable crossover modes: LP / AP / HP
  • Variable crossover filter: 50 - 250 Hz, 12 dB/octave
  • Selectable Bass Boost, Punch EQ: 0, +6db, +12 dB bass boost at 45 Hz
  • 8 - 16 gauge speaker terminals
  • 50 Amp In-line fuse is highly recommended, not included
  • Dimensions: 13.2"W x 6.8"D x 2"H

Specifications:

Power Specifications - Full Range Channels:

  • RMS Power @ 4 ohms: 50 watts x 4 channels
  • RMS Power @ 2 ohms: 75 watts x 4 channels
  • Bridged RMS Power: 150 watts x 2 channels

Amplifier Specifications:

  • Amplifier Series: Prime (Rockford Fosgate)
  • Amplifier Class: AB
  • Number of Channels: 4
  • Total Peak Power Output: 600 watts
  • Total RMS Power Output: 300 watts
  • Maximum Input Gauge Size: 4 AWG
  • Minimum Impedance Unbridged: 2 ohms
  • Minimum Impedance Bridged: 4 ohms
  • THD at Rated RMS Power: 1.0%
  • Speaker Level Inputs: Yes - with included adapter
  • Preamp Outputs: 1 pair
  • Built-in Crossover: Low-Pass (LP), High-Pass (HP), Full (AP)
  • High-Pass Crossover Frequency: 50 - 250 Hz
  • Low-Pass Crossover Frequency: 50 - 250 Hz
  • Signal-to-Noise Ratio: 100 dB
  • Channel Separation: 50 dB
  • Bass Boost: Selectable 0/+6dB/+12dB
  • Bass/Gain Remote: No
  • Fan Cooled: No
  • Fuse Rating: 50A Fuse Recommended, Not Included
  • Strappable: No
  • CEA-2006 Compliant: Yes
