Rockford-Fosgate | SKU:
M1200-1D

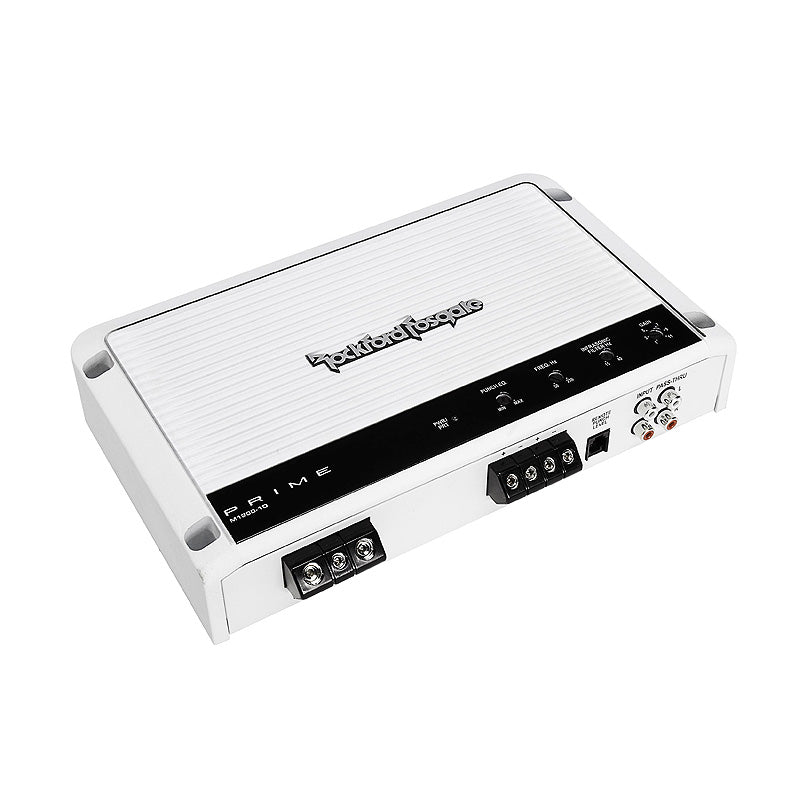

Rockford Fosgate Prime M1200-1D
$539.99
Unit price
/
Unavailable
Rockford Fosgate Prime M1200-1D - Rockford-Fosgate / M1200-1D is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
2-3 Processing Business Days. All USA order only - Ship 5-7 Business Days. We offer Expedited delivery on all eligible orders.
Description
Description
Features:
- Monoblock Marine Prime Series Class D Amplifier
- RMS Power Rating:
- 4 ohms: 400 watts x 1 chan.
- 2 ohms: 800 watts x 1 chan.
- 1 ohm: 1200 watts x 1 chan.
- Pulse Width Modulated MOSFET power supply
- Wired remote bass level control included
- LED power (green) and protect (red) indicators
- Variable Bass Boost (0 to +12 dB bass boost at 50 Hz)
- Soft start turn-on
- Mono channel operation
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty aluminum alloy heat-sink OR high-density split-dome convection heat-sink for extreme heat dissipation
- Nickel-plated RCA level inputs
- Nickel-plated screw terminals
- Variable low-pass filter (50-250 Hz, 24 dB/octave Butterworth)
- Variable 15-40Hz 12dB/octave infrasonic filter
- CEA-2006 compliant amplifier
- Frequency response: 20-250 Hz
- Dimensions: 6-7/10"W x 11"L x 2"H
Power Subwoofer Channel:
- RMS Power @ 4 ohms: 400 watts x 1 channels
- RMS Power @ 2 ohms: 800 watts x 1 channels
- RMS Power @ 1 ohm: 1200 watts x 1 channels
Specifications:
- Marine Certified: Yes
- Amplifier Class: D
- Number of Channels: 1 - Mono
- Total RMS Power Output: 1200 watts
- Maximum Input Gauge Size: 4 AWG
- Minimum Impedance Unbridged: 1 ohms
- THD at Rated RMS Power: <1.0%
- Speaker Level Inputs: No
- Preamp Outputs: 1 pair
- Built-in Crossover: Low-Pass (LP)
- Low-Pass Crossover Frequency: 50 - 250 Hz
- Subsonic Filter: 15 - 40 Hz
- Signal-to-Noise Ratio: 100 dB
- Bass Boost: 0 - 12 dB
- Bass/Gain Remote: Yes
- Fan Cooled: No
- Fuse Rating: 100A x 1
- CEA-2006 Compliant: Yes
