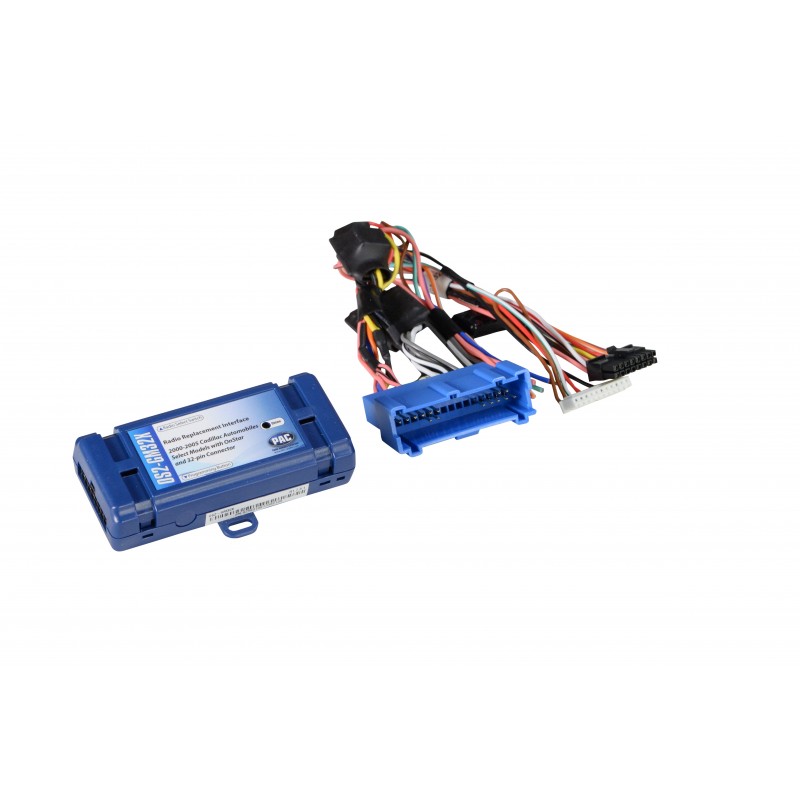

OS2-GM32X OnStar® Radio Replacement Interface for Select Cadillac Vehicles

Description

The OS2-GM32X interface allows the replacement of a factory radio in select General Motors vehicles with Class II radios. Usingthis interface will retain factory features such as warning chimes and BOSE® amplifier (Standard or Premium) when the originalradio is removed. The OS2-GM32X provides Data-Bus driven outputs such as retained accessory power (RAP), vehicle speedsignal (VSS), illumination, reverse trigger and parking brake. The OS2-GM32X also provides a secondary output for adding anoptional PAC Steering Wheel Control (SWC) retention interface (SWI-RC, SWI-CP2, SWI-X).

Features

Retain OnStar Capabilities when Installing Aftermarket Radio

Plug and Play Installation

Provides +12V ACC Via Data-Bus Interface

Provides Analog +12V Output for Variable Dash Illumination

Provides Analog +12V Output for Reverse Trigger

Retains Safety and Warning Chimes

Provides Analog Pulse Output for Vehicle Speed

Provides Analog Ground Output for Parking Brake Engagement

Retains Bose Sound System (if equipped)

Compatible with PAC Steering Wheel Control Interface PAC SWI-CP2

Application Guide

Year(s)	Make	Model	Trim Level	Additional Info
2000-2005	CADILLAC	DEVILLE	ALL TRIM LEVELS	—
2000-2003	CADILLAC	SEVILLE	ALL TRIM LEVELS	—
