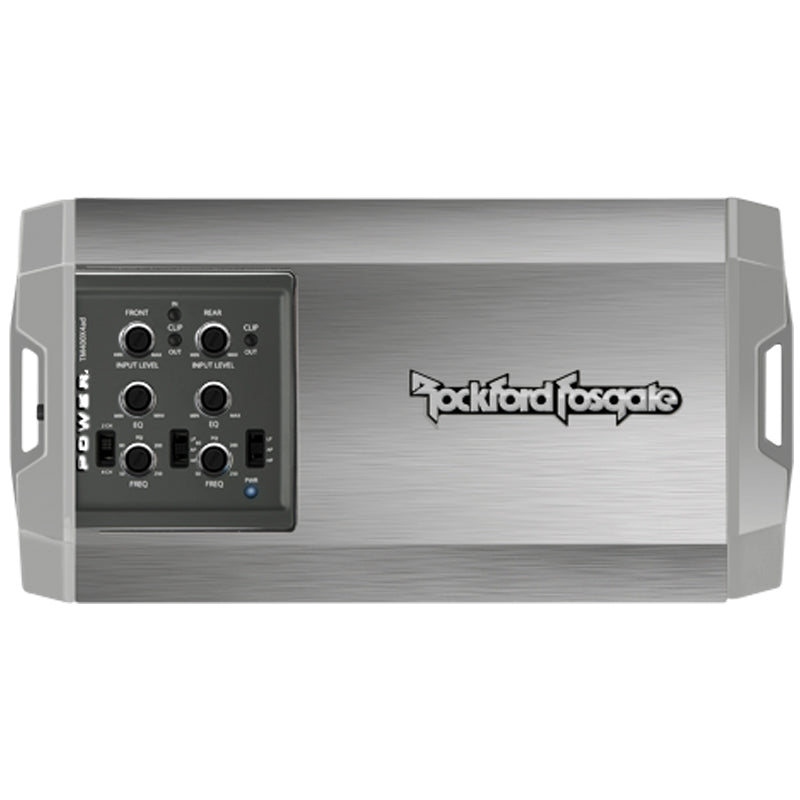

Rockford Fosgate TM400X4AD
Highlight title
Text to highlight a key feature of your product
Description
Description
Features:
- Element Ready Power Series Class-AD 4-Channel Amplifier
- RMS Power Rating:
- 4 ohms: 100 watts x 4 chan.
- 2 ohms: 100 watts x 4 chan.
- Bridged 4 ohms: 200 watts x 2 chan.
- Includes Rockford Fosgate Performance Verification Certificate
w/ Inspection Data & Actual Power Rating, (aka "Birth Sheet") - CEA-2006 Compliant Amplifier
- 4/2 Ohm muti-impedance Constant Power
- Rockford Fosgate proprietary Class-AD technology
- Differential inputs with high level auto turn-on feature
- Remote-Out feature when using high level inputs
- Features C.L.E.A.N. Set-up with 10-step set-up procedure
w/ input/output clip detection and indicator LEDs - 4-layer 2oz. copper circuit board with 2-part epoxy coating
- Real time thermal sensing with Rollback technology
- Top mounted easy access controls
- 2/4 channel input switch
- 4 Ohm bridged capable
- Twin fan cooling system
- Dual extruded heat sinks
- Discrete surface mount technology
- Extruded aluminum with UV inhibitors
- Molex, marine grade nickel plated connectors
- Ferrite core coated/booted transformer
- TO-220 MOSFETs with MEHSA
- 3-stage thermal lock extrusion
- Efficiency (average): >75%
- Input sensitivity: 150mV - 12V
- Frequency Response: 20 - 20,000 Hz
- Total Harmonic Distortion (THD): <1.0%
- Variable bass boost (LP): 0 to +18 dB bass boost at 45 Hz
- Variable treble boost (HP): 0 to +14 dB bass boost at 12.5 Hz
- Selectable Crossover: LP / AP / HP
- Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
- Variable high-pass filter: 50 - 250 Hz, 12 dB/octave
- Recommended Fuse Rating: 60A x 1 (not included)
- Dimensions: 4.25"W x 8.30"L x 1.60"H
- 16 gauge speaker output connections
- 8 gauge power and ground wiring is recommended for installation
