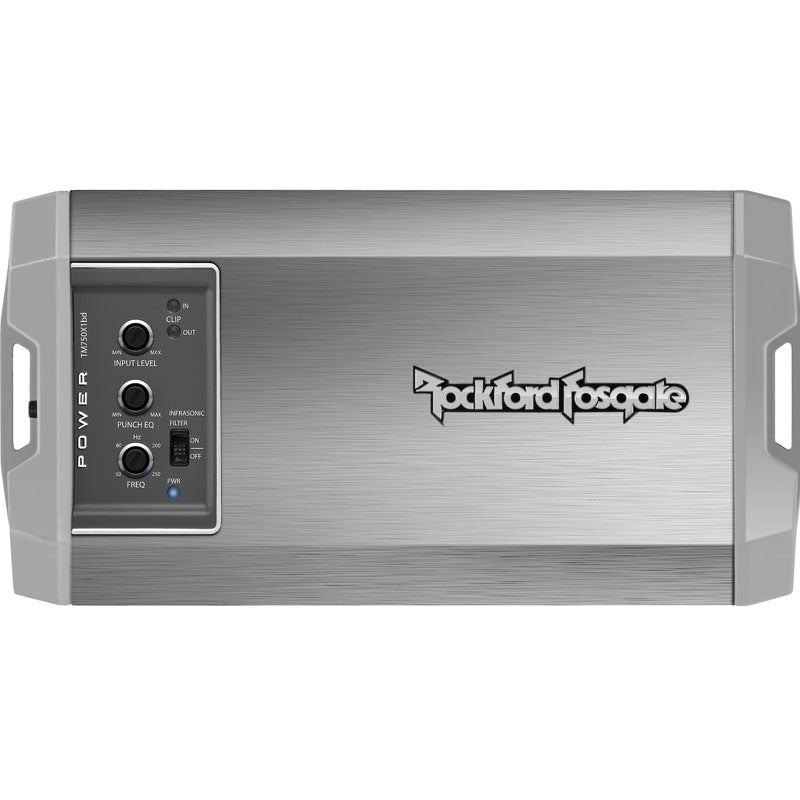

Rockford-Fosgate Power Marine TM750X1BD
Highlight title
Text to highlight a key feature of your product
Description
Description
Features:
- Rockford Fosgate Power Series TM750X1bd
- Class-bd 1-Ohm Stable Monoblock Amplifier
- RMS Power Rating:
- 4 ohms: 500 watts x 1 chan.
- 2 ohms: 750 watts x 1 chan.
- 1 ohm: 750 watts x 1 chan.
- Total power output: 750 watts
- CEA-2006 Compliant Amplifier
- Pulse Width Modulated MOSFET power supply
- PLC2 wired remote bass level control available (sold separately)
- LED power (Blue) and protect (red) indicators
- Mono channel operation
- Element Ready - This amp is protected against Dust, UV, Corrosion and utilizes stainless steel hardware
- C.L.E.A.N. Set up - Patented circuit with in/out LEDs to indicate input and/or output clips
- Class-BD Technology - combines Class B topology with Class-D efficiency. Provides more power from the amplifier with less drain on the vehicle's electrical system.
- Constant Power - Since speaker impedance rises as music frequencies change, Rockford Fosgate created this patented circuit topology that increases voltage and current as the speaker's impedance rises for more amplifier power.
- Differential inputs with high level auto turn-on feature
- Speaker-level (high-level) inputs
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual extruded aluminum heat sinks to maintain heat dissipation at high outputs
- Input Sensitivity: 150 mV to 12 V
- Frequency Response: 20 - 230 Hz
- Total Harmonic Distortion:
- <1.0% @ 4-Ohm
- <1.0% @ 2-Ohm
- Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
- Variable Bass Boost: 0 to +18 dB bass boost at 45 Hz
- Dimensions: 4.25"W x 8.3"L x 1.6"H
Specifications:
Power Specifications - Subwoofer Channel:
- RMS Power @ 4 ohms: 500 watts x 1 channels
- RMS Power @ 2 ohms: 750 watts x 1 channels
- RMS Power @ 1 ohm: 750 watts x 1 channels
- Peak Power Output: 1500 watts x 1 channels
Amplifier Specifications:
- Amplifier Series: Power (Rockford Fosgate)
- Marine Certified: Yes
- Amplifier Class: BD
- Number of Channels: 1 - Mono
- Total Peak Power Output: 1500 watts
- Total RMS Power Output: 750 watts
- THD at Rated RMS Power: <1.0%
- Speaker Level Inputs: Yes
- Built-in Crossover: Low-Pass (LP)
- Low-Pass Crossover Frequency: 50 - 250 Hz
- Bass Boost: 0 - 18 dB
- Bass/Gain Remote: Yes
- CEA-2006 Compliant: Yes
