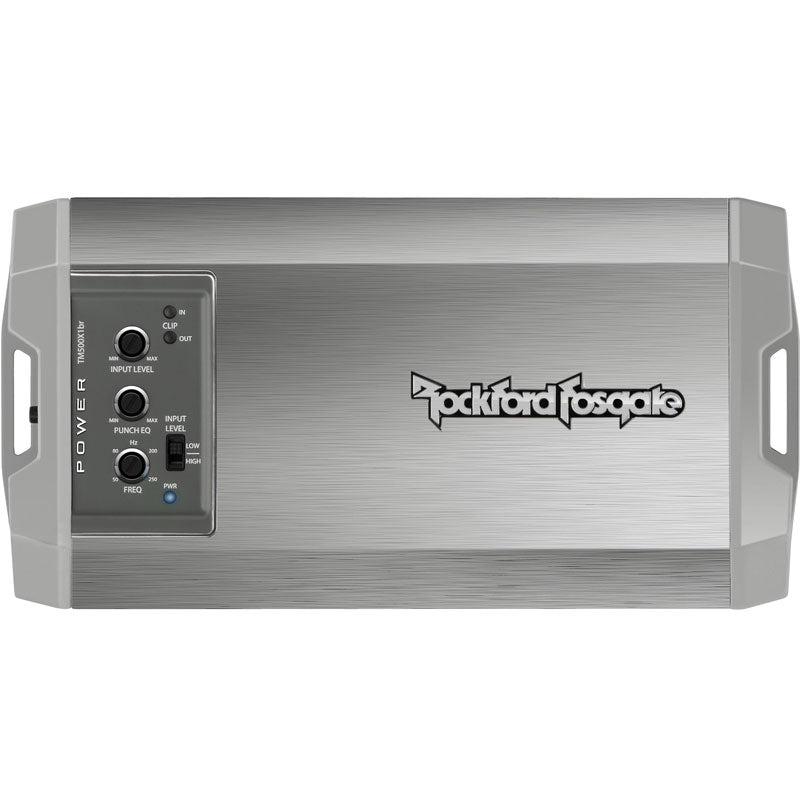

Rockford-Fosgate Power Marine TM500X1BR
Highlight title
Text to highlight a key feature of your product
Description
Description
Features:
- Element Ready Power Series Class-BR Mono Amplifier
- RMS Power Rating:
- 4 ohms: 175 watts x 1 chan.
- 2 ohms: 300 watts x 1 chan.
- 1 ohm: 500 watts x 1 chan.
- Includes Rockford Fosgate Performance Verification Certificate
w/ Inspection Data & Actual Power Rating, (aka "Birth Sheet") - CEA-2006 Compliant Amplifier
- Rockford Fosgate proprietary Boosted Rail technology
- Differential inputs with high level auto turn-on feature
- Remote-Out feature when using high level inputs
- Features C.L.E.A.N. Set-up with 10-step set-up procedure
w/ input/output clip detection and indicator LEDs - Optional Rockford Fosgate PLC2 provides Punch Level Control
- 4-layer 2oz. copper circuit board with 2-part epoxy coating
- Real time thermal sensing with Rollback technology
- Top mounted easy access controls
- Twin fan cooling system
- Dual extruded heat sinks
- Discrete surface mount technology
- Extruded aluminum with UV inhibitors
- Molex, marine grade nickel plated connectors
- Ferrite core coated/booted transformer
- TO-220 MOSFETs with MEHSA
- 3-stage thermal lock extrusion
- Efficiency (average): >75%
- Input sensitivity: 150mV - 12V
- Frequency Response: 20 - 220 Hz
- Total Harmonic Distortion (THD): <1.0%
- Variable punch EQ: 0 to +18 dB bass boost at 45 Hz
- Variable low-pass filter: 50 - 250 Hz, 12 dB/octave
- Recommended Fuse Rating: 60A x 1 (not included)
- Dimensions: 4.25"W x 8.30"L x 1.60"H
- 10 - 16 gauge speaker output connections
Specifications:
Power Specifications - Subwoofer Channel:
- RMS Power @ 4 ohms: 175 watts x 1 channels
- RMS Power @ 2 ohms: 300 watts x 1 channels
- RMS Power @ 1 ohm: 500 watts x 1 channels
Amplifier Specifications:
- Amplifier Class: BR
- Number of Channels: 1 - Mono
- Maximum Input Gauge Size: 8 AWG
- Minimum Impedance Unbridged: 1 ohms
- Minimum Impedance Bridged: Not Bridgeable
- THD at Rated RMS Power: <1.0%
- Speaker Level Inputs: Yes
- Preamp Outputs: No
- Built-in Crossover: Low-Pass (LP)
- Low-Pass Crossover Frequency: 50 - 250 Hz
- Bass Boost: 0 - 18 dB
- Fan Cooled: Yes
- Fuse Rating: 60A X 1 In-Line Fuse Recommended
- CEA-2006 Compliant: Yes
