Rockford-Fosgate | SKU:
RFPEQU

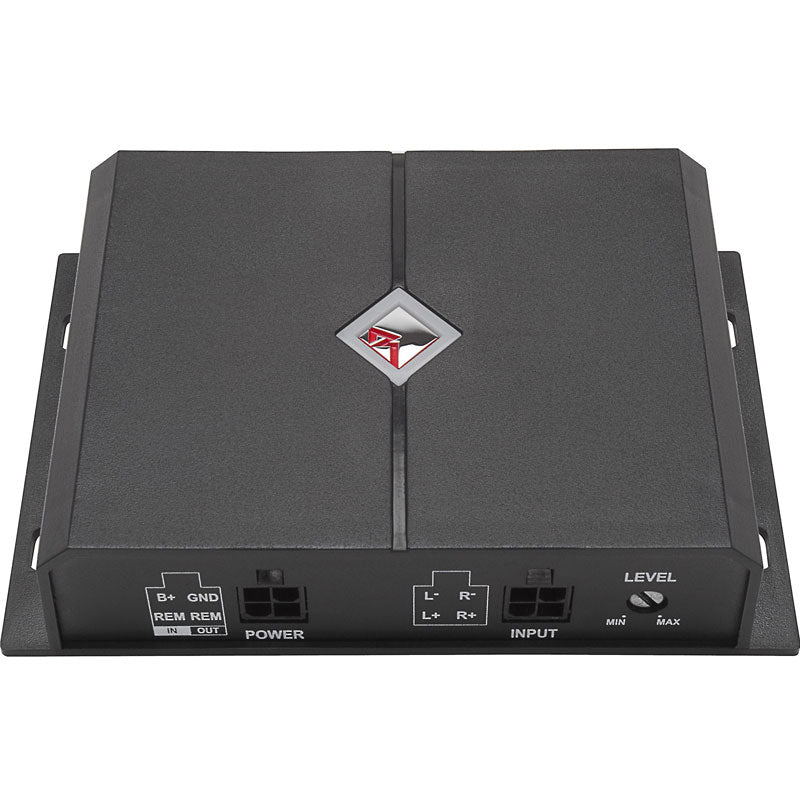

Rockford-Fosgate RFPEQU
$99.99
Unit price
/
Unavailable
Rockford-Fosgate RFPEQU - Rockford-Fosgate / RFPEQU is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
2-3 Processing Business Days. All USA order only - Ship 5-7 Business Days. We offer Expedited delivery on all eligible orders.
Description
Description
Features:
- 2-channel universal Punch EQ
- Built-in line driver provides bass boost to any aftermarket audio system
- High voltage line driver allows for up to 10 volts RMS output
- Built-in Punch EQ2 equalizer
- Independent gain control
- Auto-Sense turn-on with remote out (high level in)
- 2-channel (left/right) high level signal input
- 2 RCA (left/right) low level output
- Low distortion and low noise operation
- Speaker level to RCA line level converter
- PEQ remote included
- Discreet surface mount technology
- Easily mounts behind dash
- It is recommended to install as close to the source unit as possible
- Dimensions: 4.72"W x 3.15"D x 1.1"H
Specifications:
- Operating Voltage: 9-16 VDC @ 200 mA
- Frequency Response: 20-20,000 Hz
- Input Impedance: 20,000 ohms
- Output Impedance: 500 ohms
- Input Voltage: 650mV-10V RMS
- Output Voltage: 10V RMS
- THD+N: .005%
- Signal to Noise Ratio:
- >100dB @ 2V (CEA)
- >110dB @ 10V (Max Output)
- EQ Frequency Controls:
- Up to +18dB @ 45 Hz
- Up to +12dB @ 12,500 Hz
- Fuse Size: 1 amp
