Alpine R2-W10D2 R2-Series Subwoofers

Alpine R2-W10D2 R2-Series Subwoofer

The Alpine R2-W10D2 R2-Series Subwoofer is designed for deep, powerful bass with a 10" diameter and dual 2-ohm voice coils. It features a Kevlar-reinforced pulp cone and HAMR Santoprene rubber surround for durability and superior performance. With a frequency response of 26-200 Hz and peak power handling of 2250 watts, this subwoofer ensures a high-impact audio experience. The R2-W10D2 is optimized for both sealed and ported enclosures, providing flexibility in installation.

General Features:

• High Power Handling: Supports 300-750 watts RMS (375 watts per coil) and up to 2250 watts peak power.
• Durable Construction: Kevlar reinforced pulp cone and HAMR Santoprene rubber surround for enhanced durability.
• Versatile Enclosure Options: Compatible with sealed box volume of 0.48-0.93 cu. ft. and ported box volume of 0.83-1.38 cu. ft.
• Compact Design: Top-mount depth of 5.975" and mounting height of 0.8" for flexible installation.

What's in the box:

• Alpine R2-W10D2 owner's manual
• One 10" Dual 2-ohm voice coil subwoofer

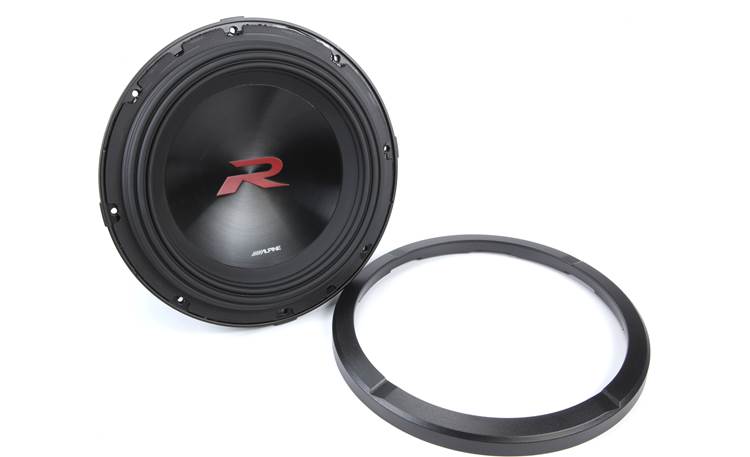

• Plastic trim ring
• Two 4.5" jumper wires (each with single banana connector on both ends)
• Application guide (English/French)
• On-line product registration information
• Warranty information (English/French)
• Important Notice (English/French)
